Product Details
＋

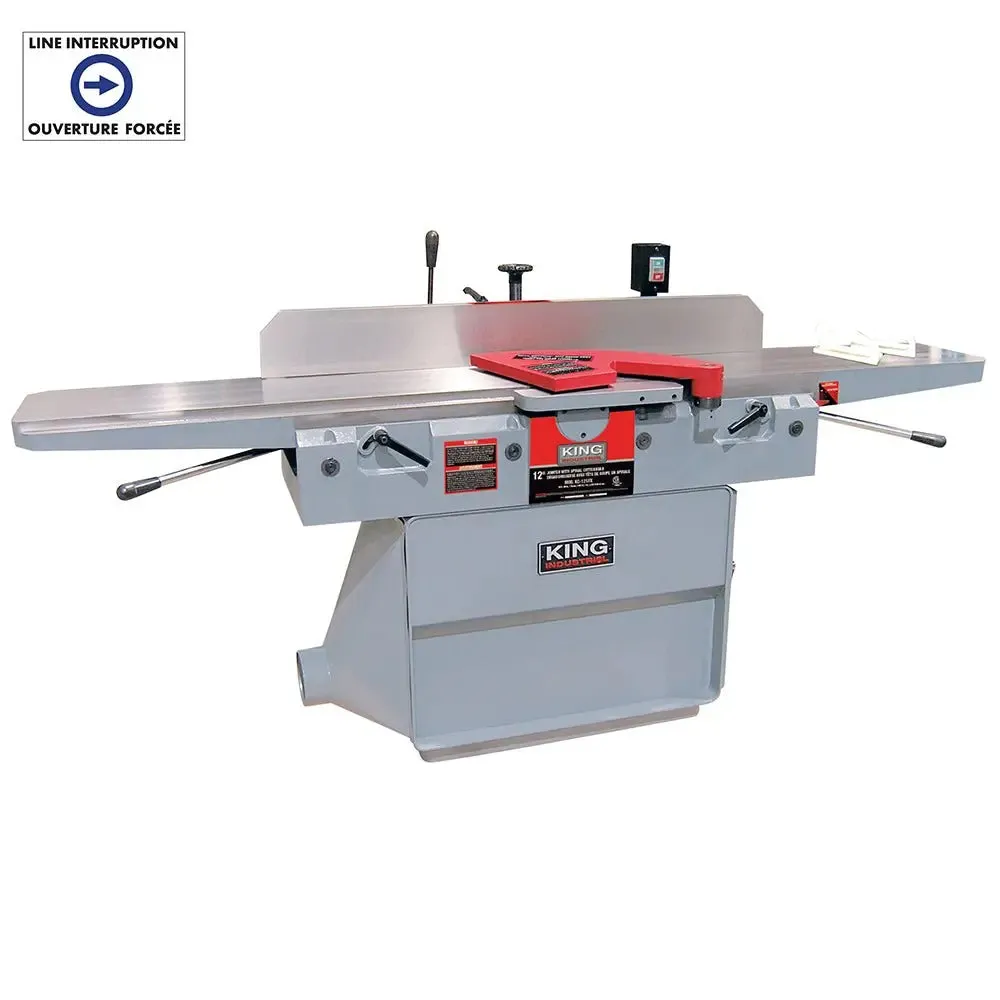

12" INDUSTRIAL JOINTER WITH SPIRAL CUTTERHEAD (220V)
- Powerful 3 HP motor
- Parallelogram table adjustment system
- A spiral cutterhead is 50% quieter than a conventional cutterhead
- Precision ground cast-iron tables
- Lever actuated infeed table, with lock handle, for quick and easy height adjustments
- Imperial/Metric depth-of-cut scale
- Easy access push-button on/off switch is conveniently positioned behind and above the table
- Connect a dust collection system to its 5" dust hood
- Knives rest on adjustable Jack Screws; lock bar and lock screws keep knives in place
- Sliding bar T-handle controls fence angle adjustment and locks with a single control
- Includes 2 safety push blocks
- MODEL KC-125FX
- CAPACITY 12"
- CUTTERHEAD SPEED 5,000 RPM
- DIAMETER OF THE CUTTERHEAD 3-7/8"
- RABBETING CAPACITY 3/4" x 12"
- TABLE SIZE 84" x 13"
- FENCE SIZE 36" x 5"
- MOTOR 15 Amp.
- VOLTAGE 220V, 1 phase, 60 Hz
- ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT84" x 40" x 43" / 706 lbs
- PACKAGING DIMENSIONS (LXWXH) / WEIGHT88-7/8" x 29-1/2" x 40-5/8" / 930 lbs
