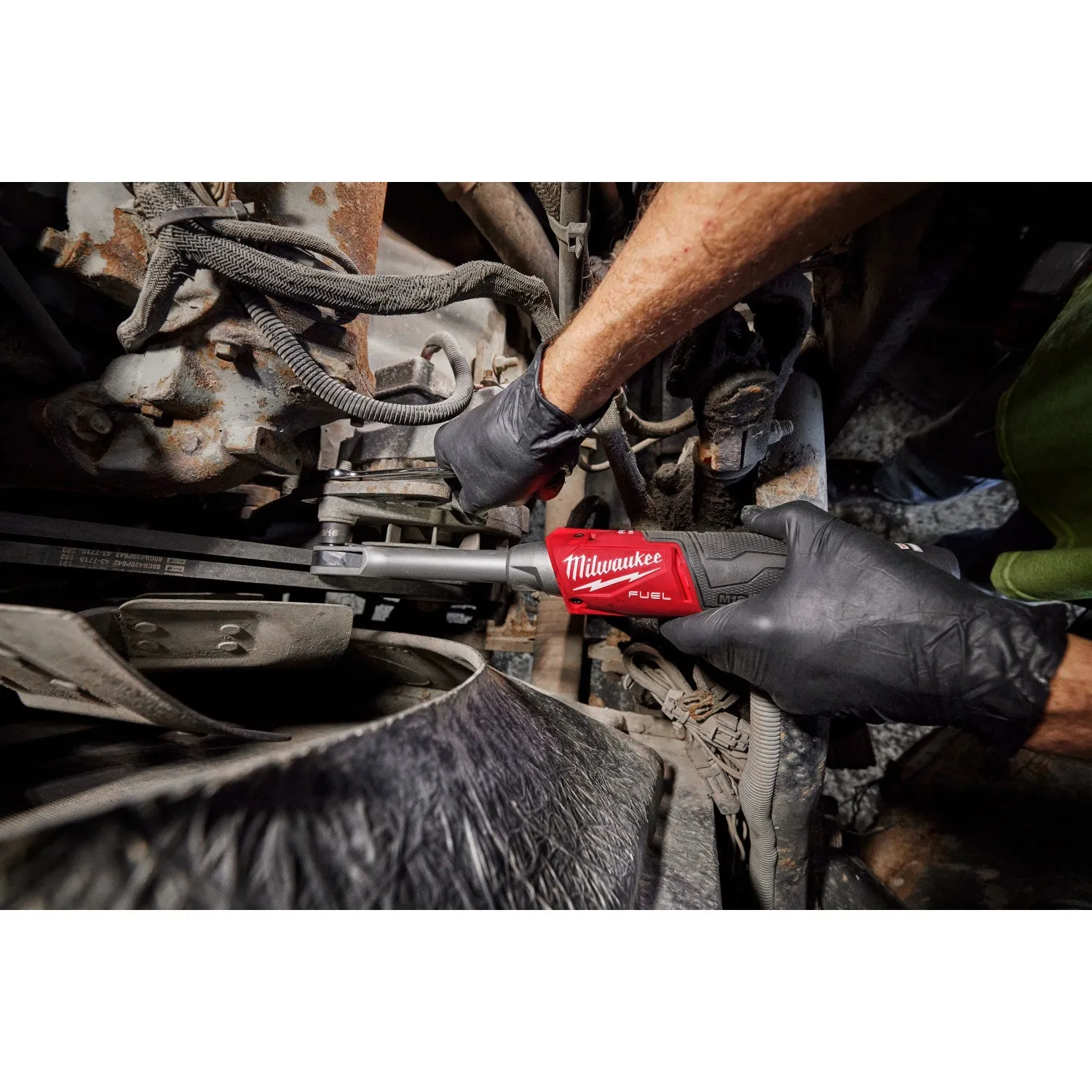

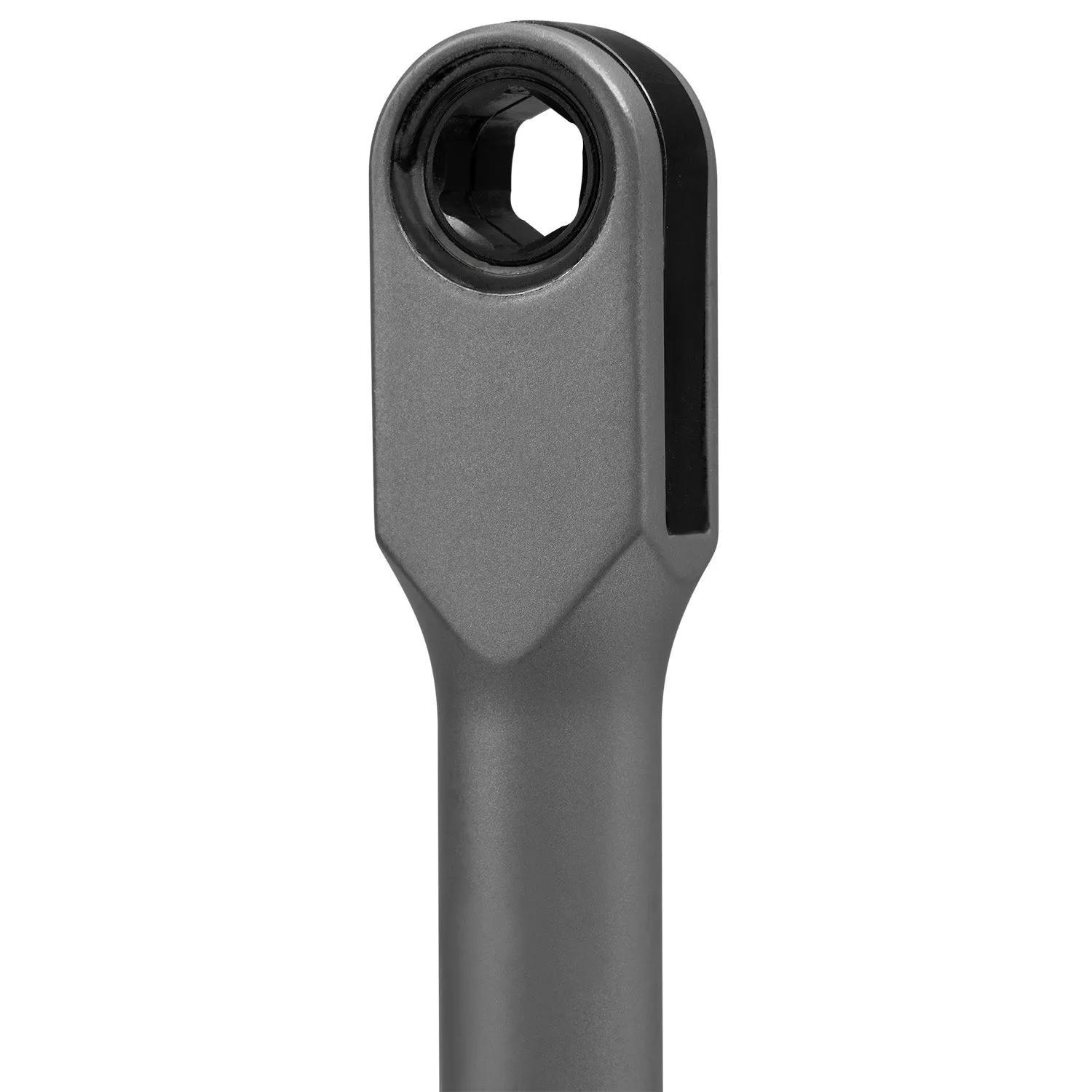

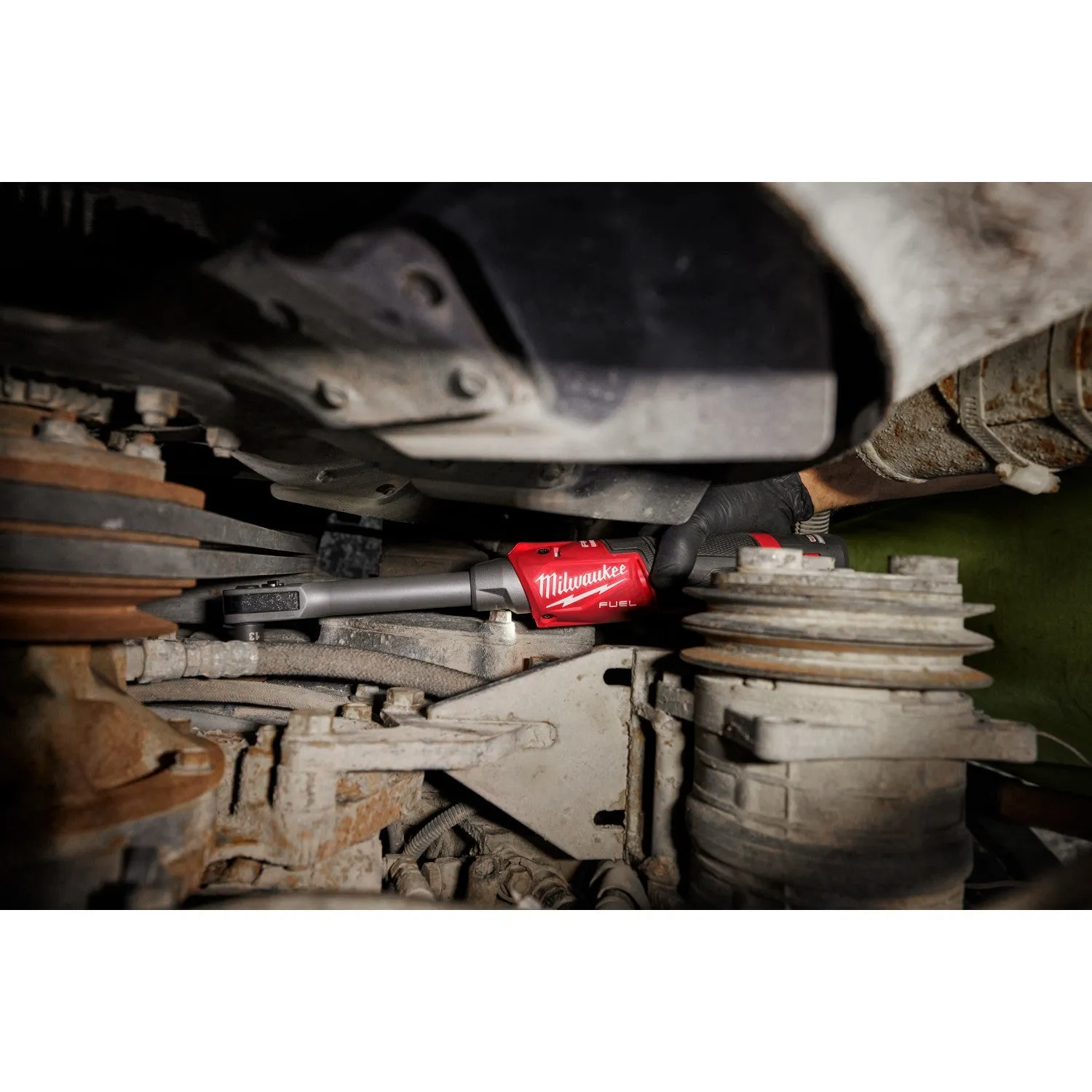

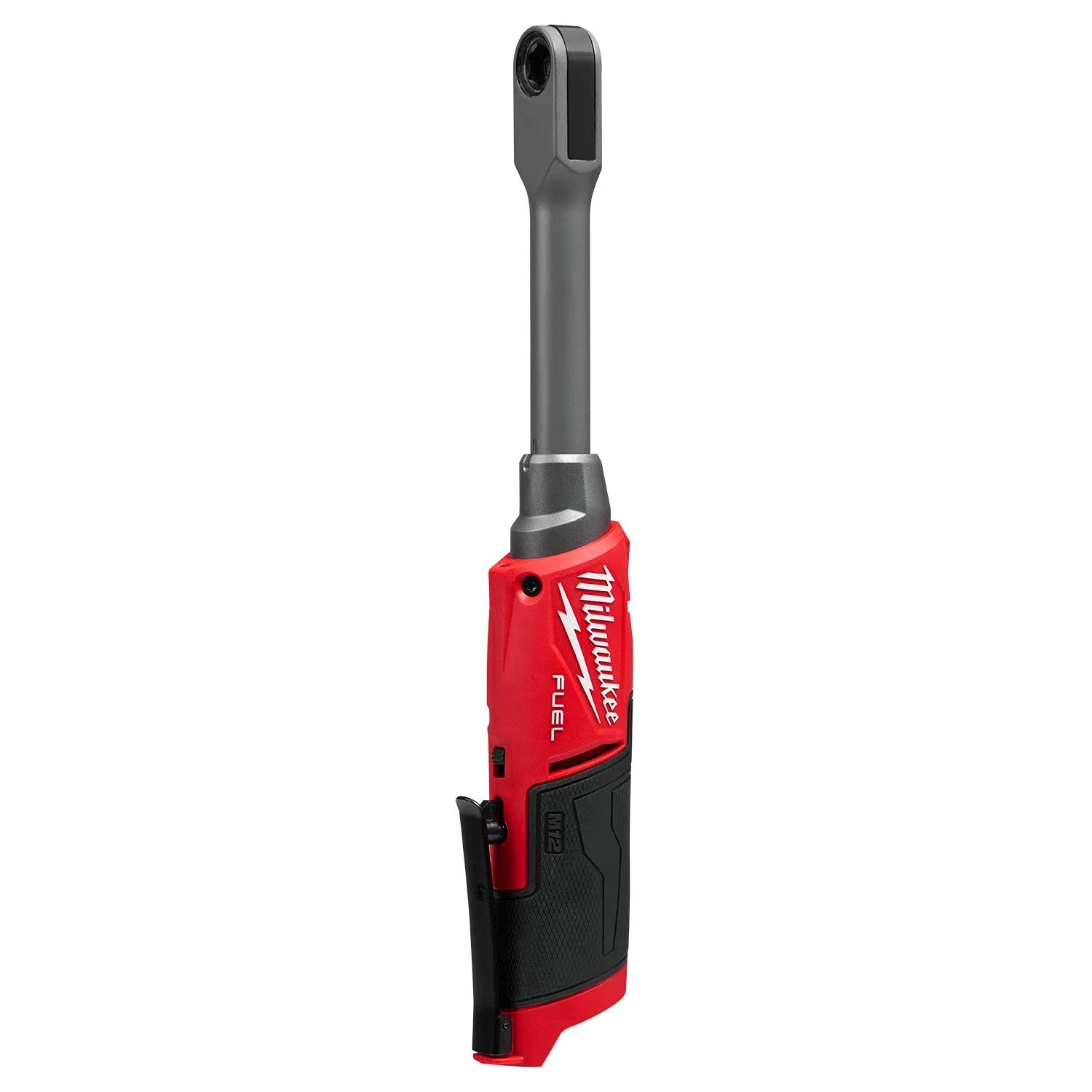

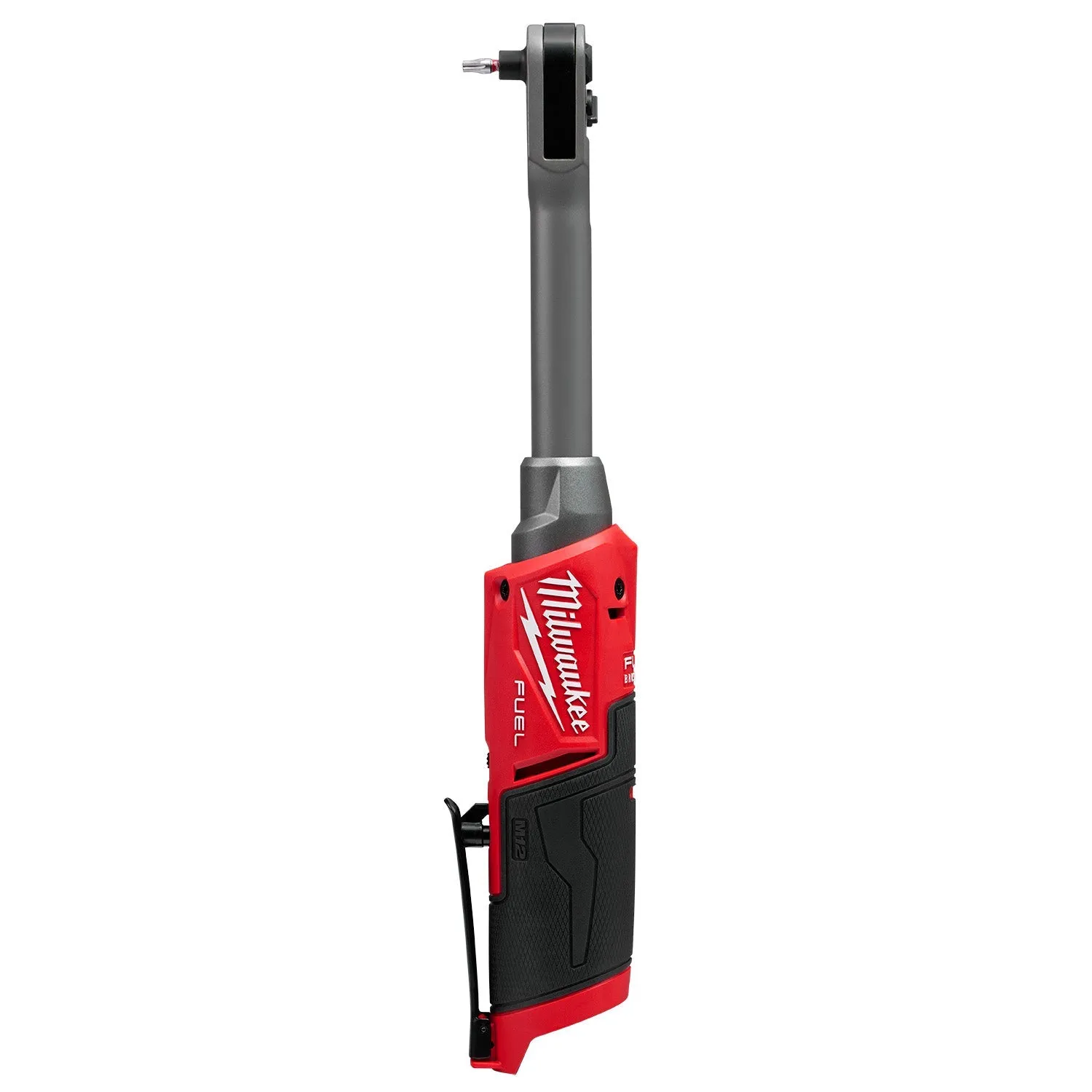

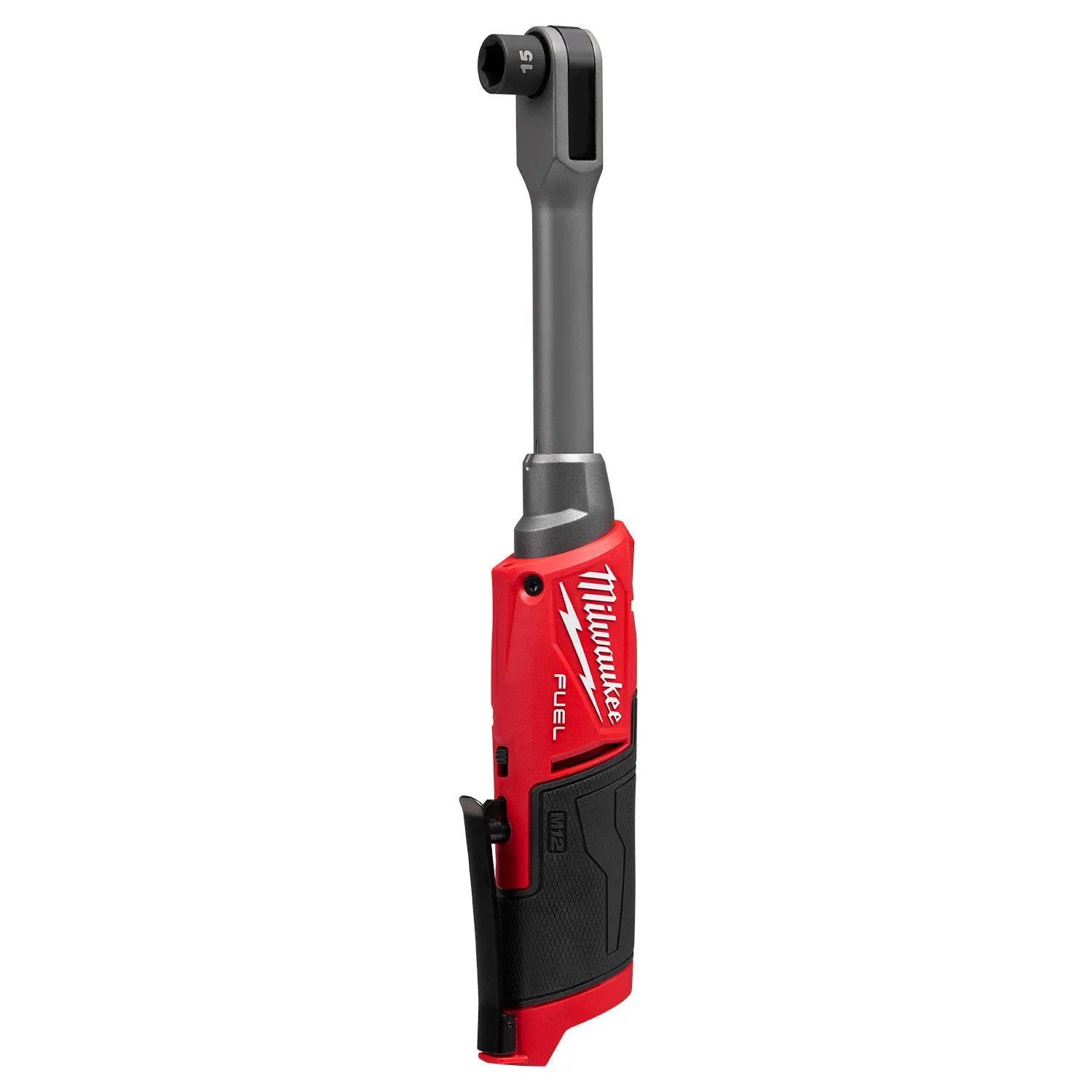

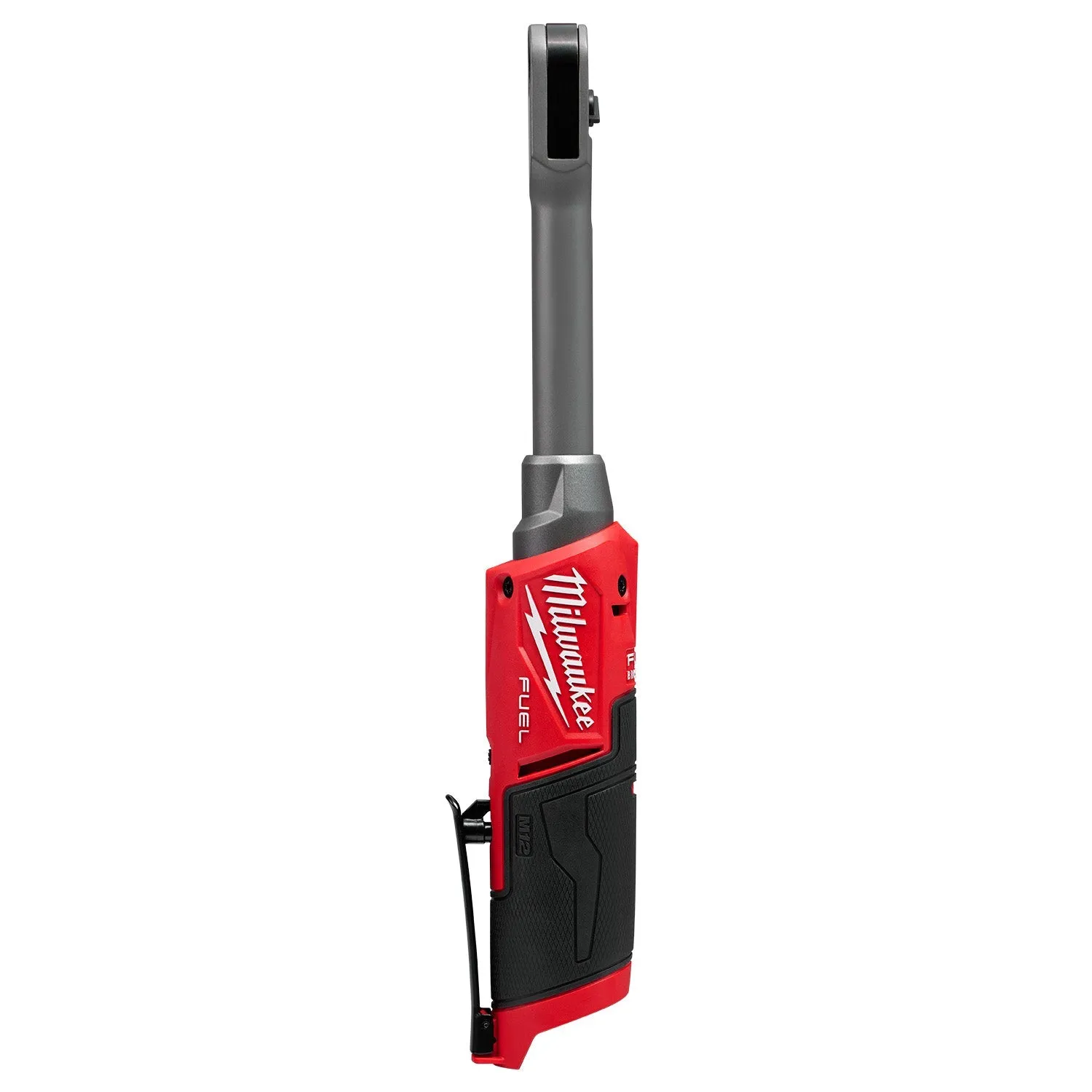

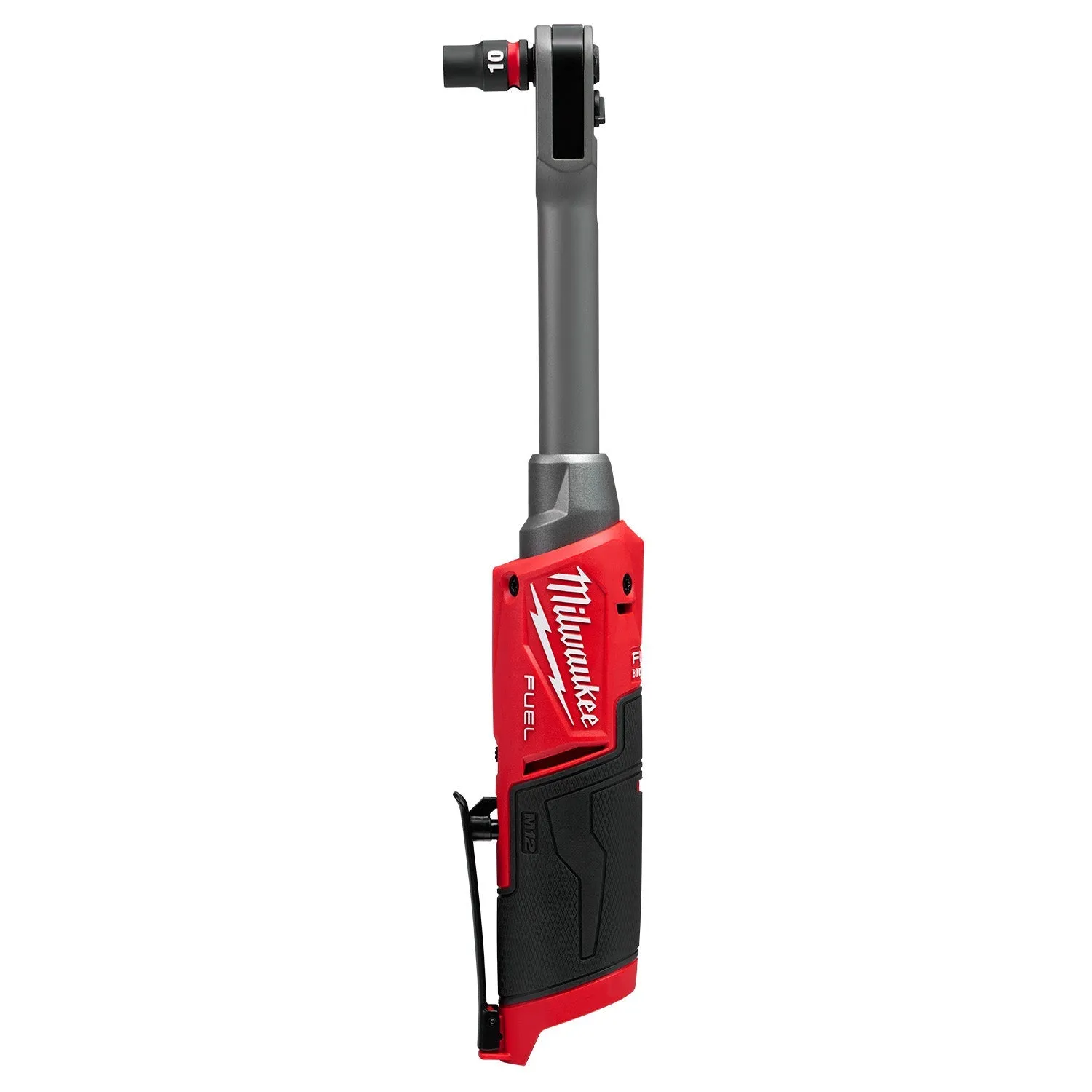

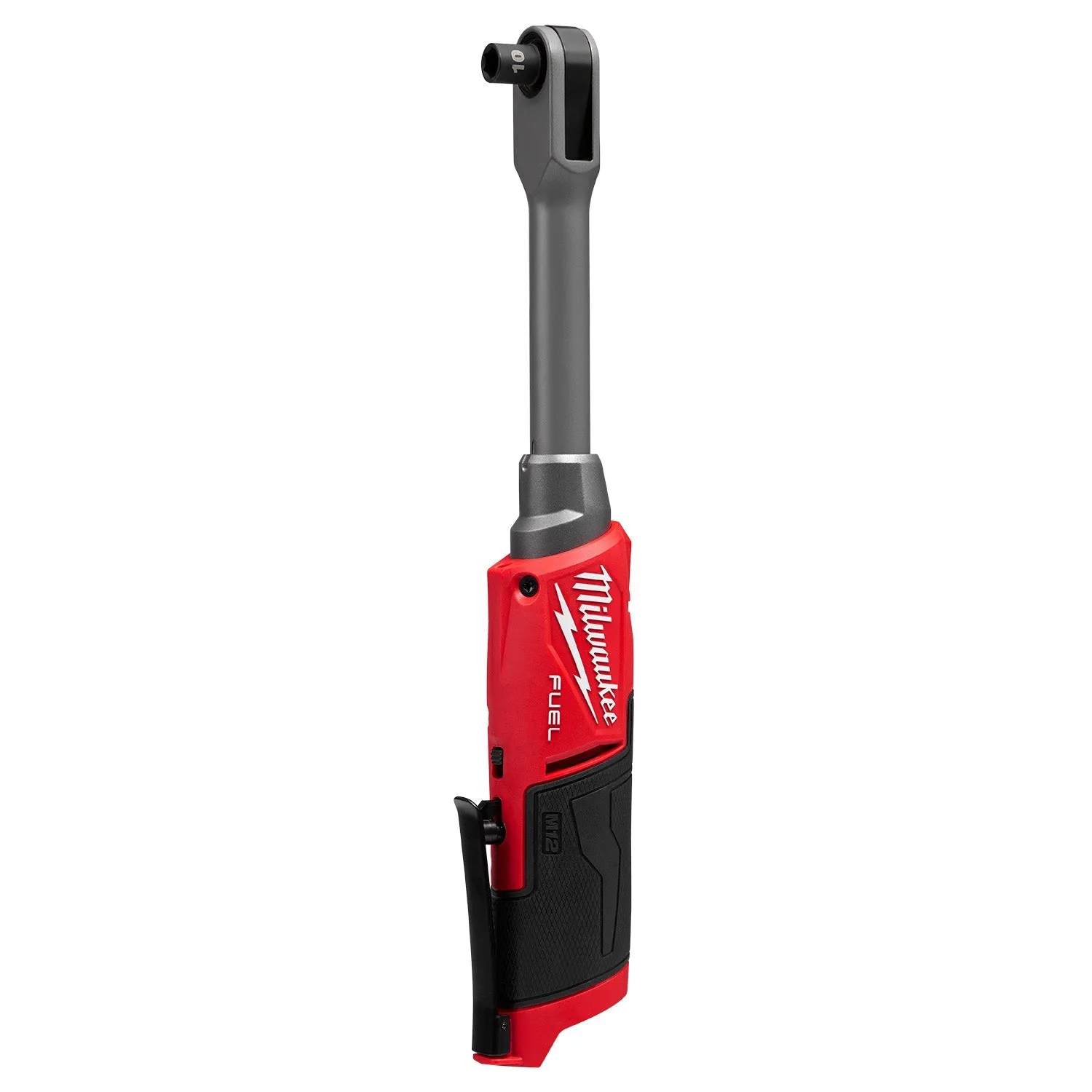

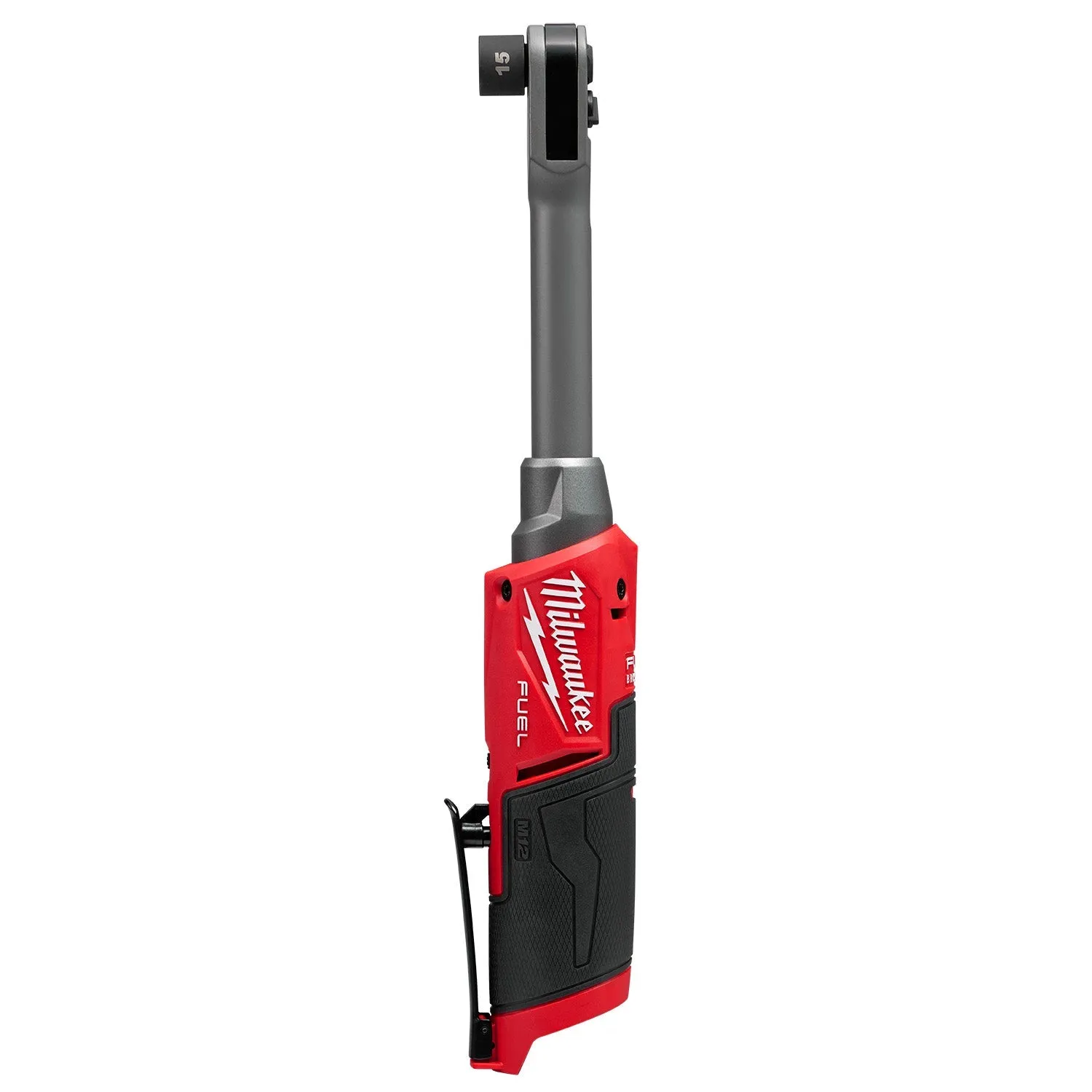

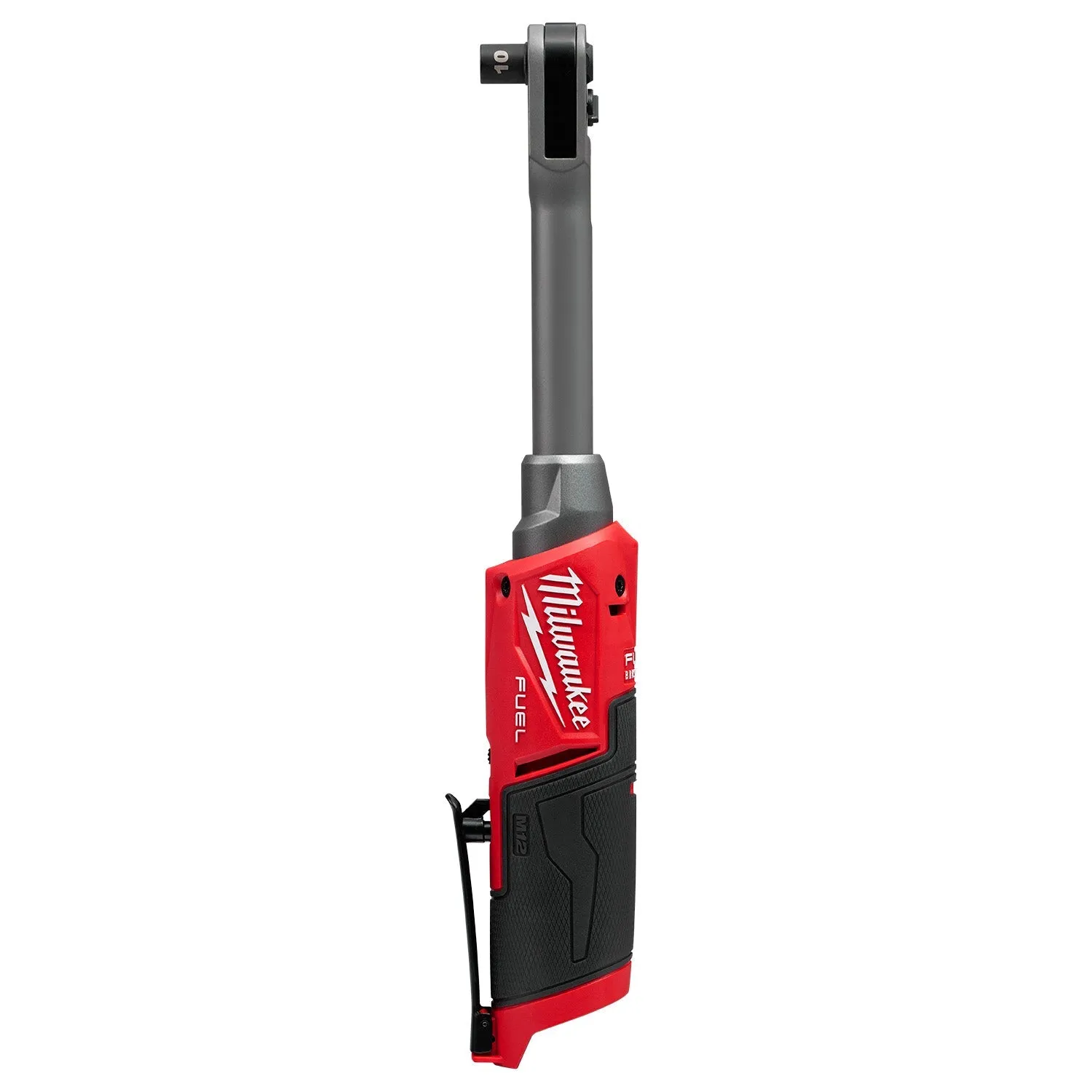

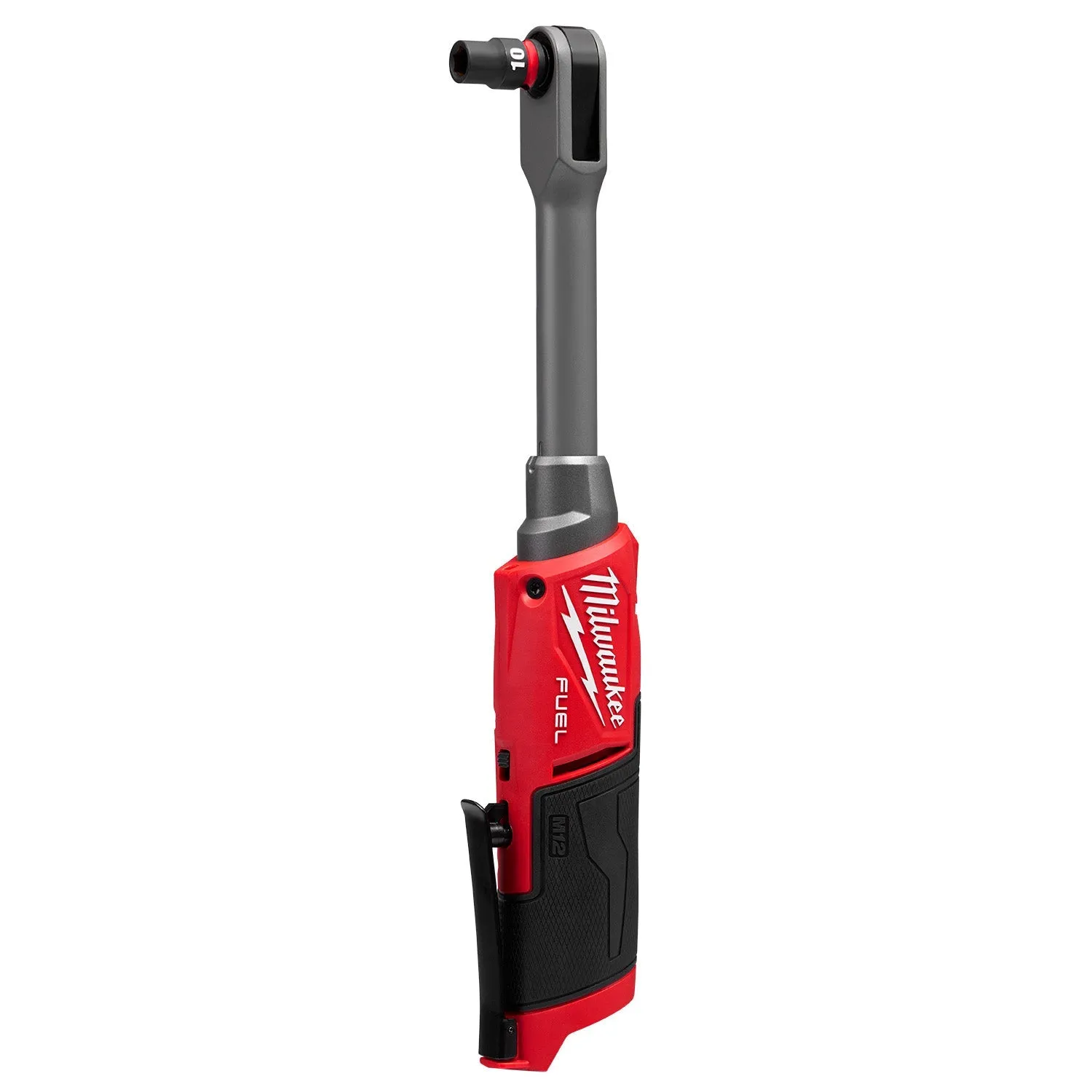

The MILWAUKEE® M12 FUEL™ INSIDER™ Extended Reach Box Ratchet is a new-to-world solution that reinvents the traditional ratchet. The low-profile head design allows sockets & adapters to be inserted directly into the tool. The M12 FUEL™ INSIDER™ delivers UNRIVALED ACCESS and over ¾” shorter head profile size with the socket to reach deep into the engine bay and fit into the tightest spaces. The INSIDER™ delivers the combination of 60 FT-LBS OF MAX TORQUE and 350 RPMs to remove stubborn fasteners and complete more work faster. Mechanics will experience the ULTIMATE VERSATILITY with the provided INSIDER™ Box Ratchet Sockets (8-19, & 21mm), ¼” Hex Bit, ¼” anvil adapter, & 3/8” anvil adapter to tackle any job in the shop. The Box Ratchet 6 Point Sockets are pass through up to 15mm & 9/16” to run nuts on threaded rod and eliminate the frustration of sockets bottoming out. The M12 FUEL™ INSIDER™ Extended Reach Box Ratchet is part of the M12™ System, which is fully compatible with over 150 solutions.
Features
- Unrivaled Access with INSIDER™ Box Ratchet Sockets
- Best combination of speed (350 RPM) & torque (60 ft-lbs) with worlds smallest head size
- Ultimate Versatility to get more jobs done with one tool
- Includes 13PC Metric INSIDER™ Box Ratchet Sockets: 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21
- Includes 3 INSIDER™ Box Ratchet Adapters: 1/4" Hex, 1/4" Anvil, 3/8" Anvil
- POWERSTATE™ brushless motor delivers maximum power and longer motor life
- Can be used manually without engaging the tool’s motor
- Dual LED lights to illuminate work areas

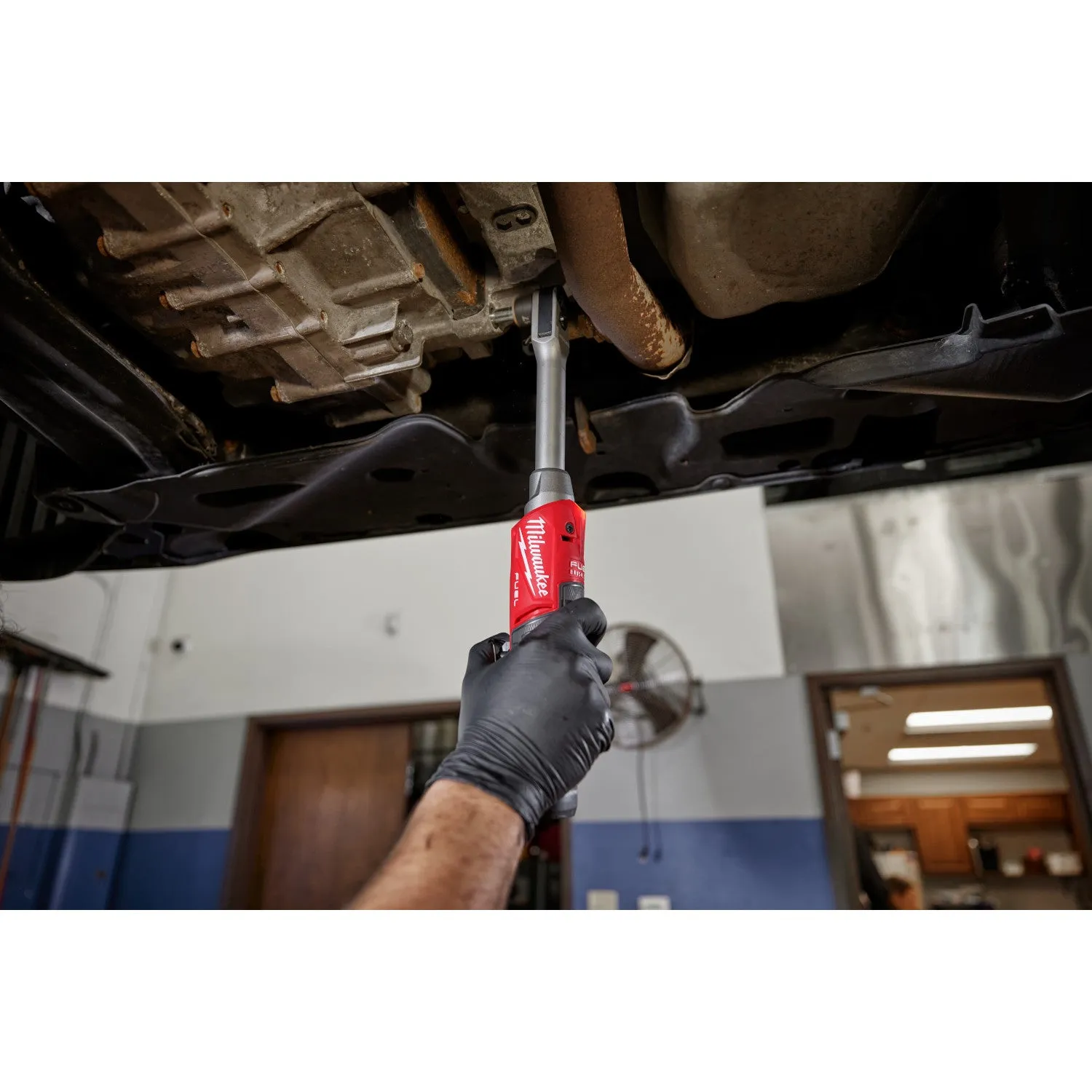

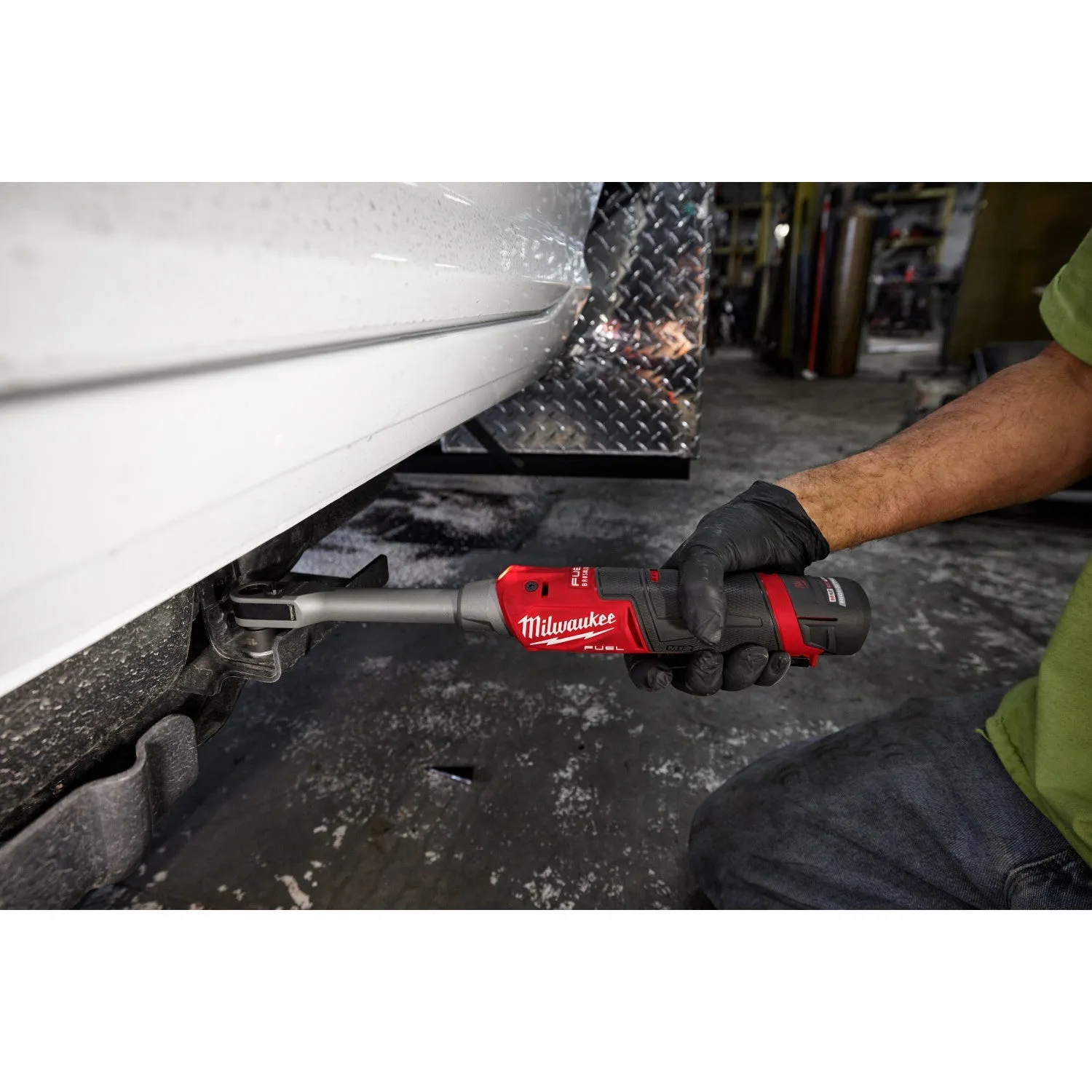

- Extended reach neck for ultimate access and reduce knuckle busting
- On-board battery fuel gauge displays remaining run time
- Extended paddle switch for multiple grip positions
- Sockets can be inserted into both sides of the tool to eliminate the trigger from impeding access
Includes
(1) M12 FUEL Insider Extended Reach Box Ratchet; (1) Socket Rail; (1) 8-19; 21mm Socket Set; (1) 1/4" Hex Adapter; (1) 1/4 Drive Anvil Adapter; (1) 3/8" Drive Anvil Adapter
Warranty
5 Year
Specifications
| Battery Composition: | Lithium-Ion (Li-ion) |
| Batteries Included / Bare Tool: | Bare Tool |
| Battery System *: | M12™ |
| FUEL™ *: | Yes |
| Motor Type *: | POWERSTATE™ Brushless |
| Power Tool Branding *: | FUEL™ |
| Anvil Size *: | 3/8 in; 1/4 in; 1/2 in |
| Battery Type: | Lithium Ion |
| Battery Voltage *: | 12 |
| Color Finish: | Metallics; Blacks; White; Red |
| Maximum RPM *: | 350 |
| Number of Batteries Required: | 1 |
| Number of Speed Settings: | Variable |
| Product Storage Included: | No Case Included |
| Rotations Per Minute Range (RPM): | 0-350 |
| Weight Excluding Battery (lb) *: | 2.3 |
| Badge Branding *: | FUEL |
| Fastening Torque: | 60 |
| Material *: | Metal |
| Weight - Battery Installed (lb): | 2.7 |
| Maximum Torque (ft-lbs): | 60 |
| Product Type *: | Cordless Ratchet Wrench |
| Trigger: | Yes |
| Head Profile (in): | 0.83 |
| Torque Range: | 0 - 60ft-lbs |
