Product Details
＋

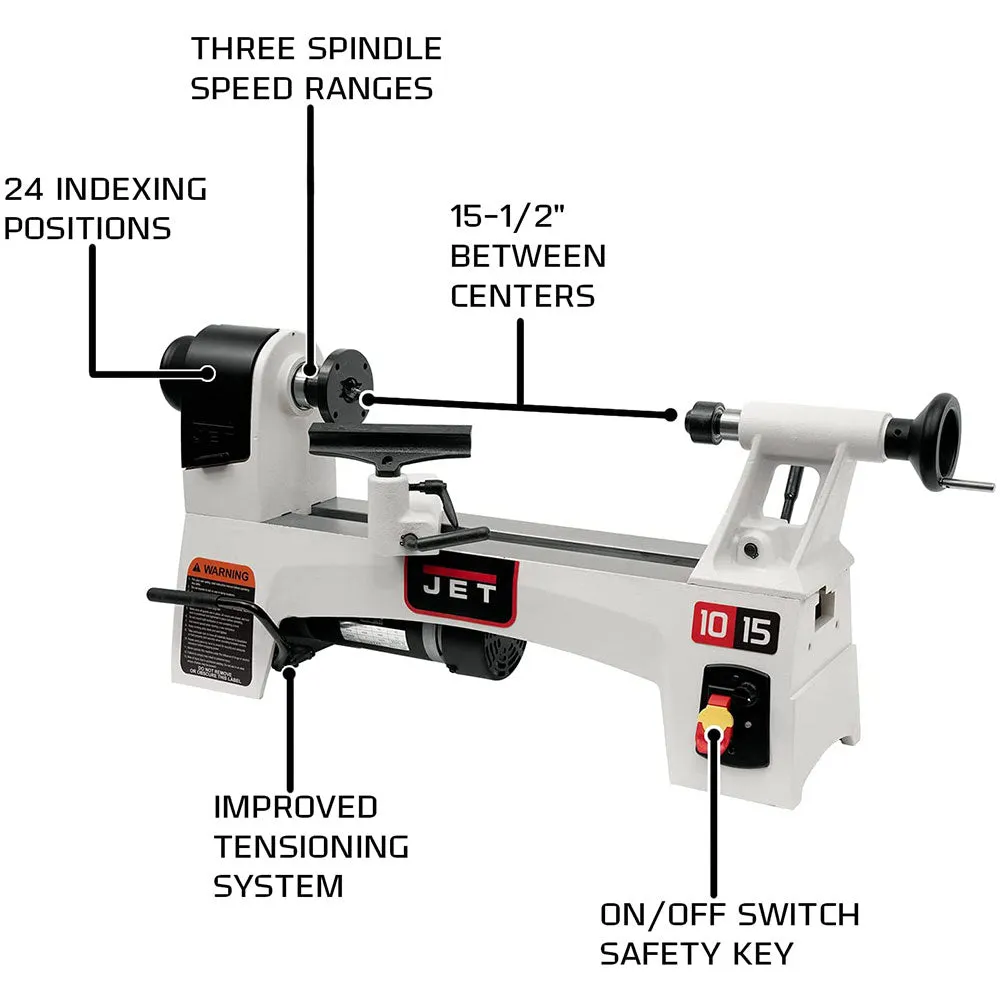

Features
- 5-1/2� between centers
- Three speed ranges: 200-1050, 300-1750 and 600-3600
- Integrated 24 position indexing
- Improved tensioning system with easier access to belts
- Wider bed ways provide increased rigidity
- Live center in the tailstock
What's in The Box

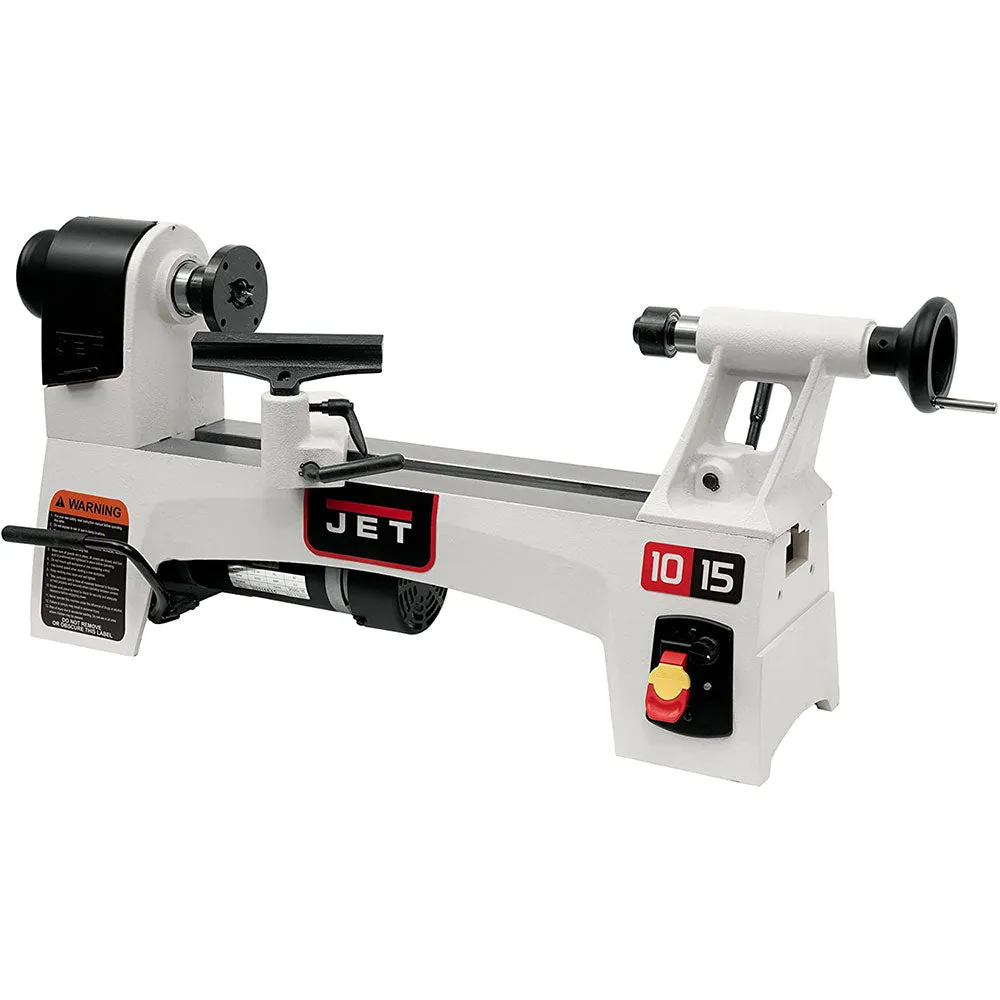

- Variable Speed Wood Lathe - 719110
- Owner's Manual
Warranty
- 5 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | 719110 |
| Brand | Jet |
| Motor Power | 1/2 HP |
| Motor Phase | 1 |
| Motor Voltage | 115V |
| Prewired Voltage | 115V |
| Motor Current | 4 Amps |
| Recommended Circuit Size | 10 Amps |
| Swing Over Bed | 10 in. |
| Swing Over Tool Rest Base | 7-5/16 in. |
| Distance Between Centers | 15-1/2 in. |
| Spindle Bore | 3/8 |
| Spindle Taper | MT2 |
| Quill Taper | MT2 |
| Quill Travel | 2 in. |
| Spindle Thread (TPI) | 1 in./8 |
| Speed Range | 200-1050, 300-1750, 600-3600 |
| Number of Indexing Positions 24 | |
| Bed Construction Cast Iron | |
| Length | 26 in. |
| Width | 7 in. |
| Height | 14 in. |
| Weight | 78 lbs |
