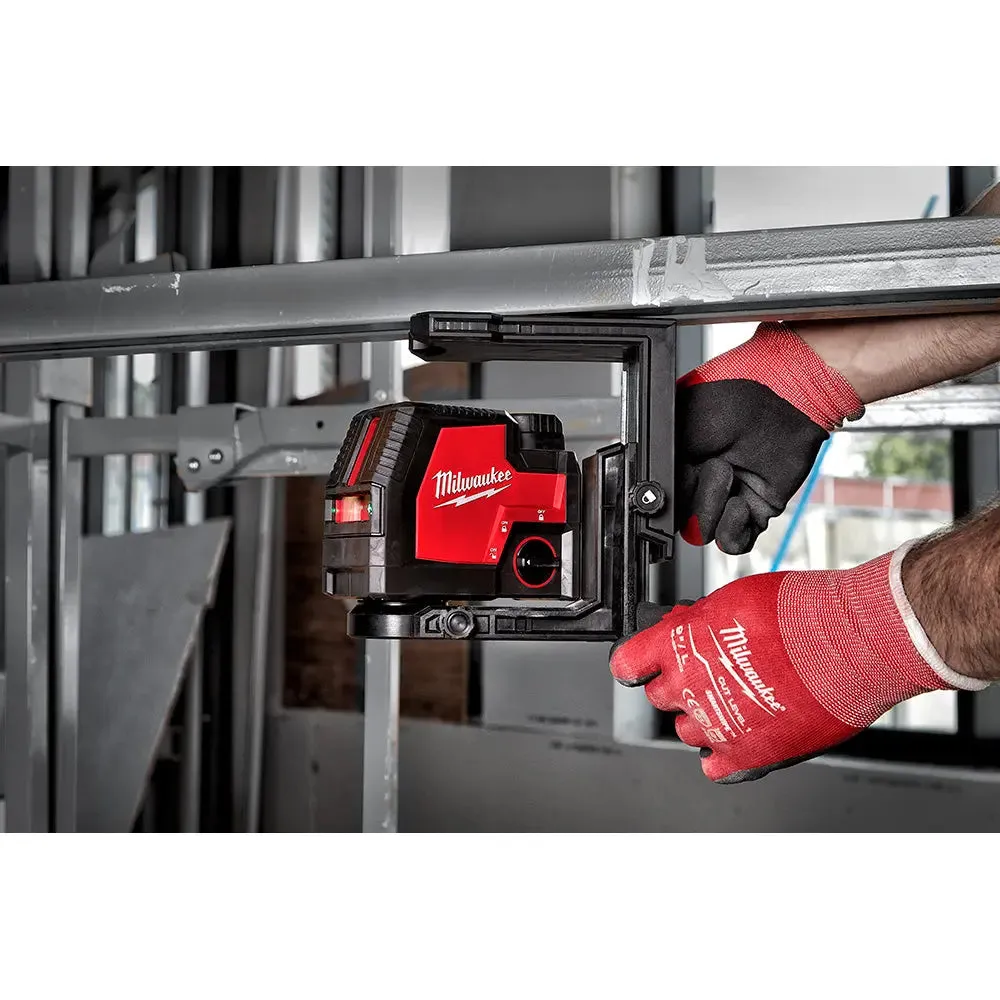

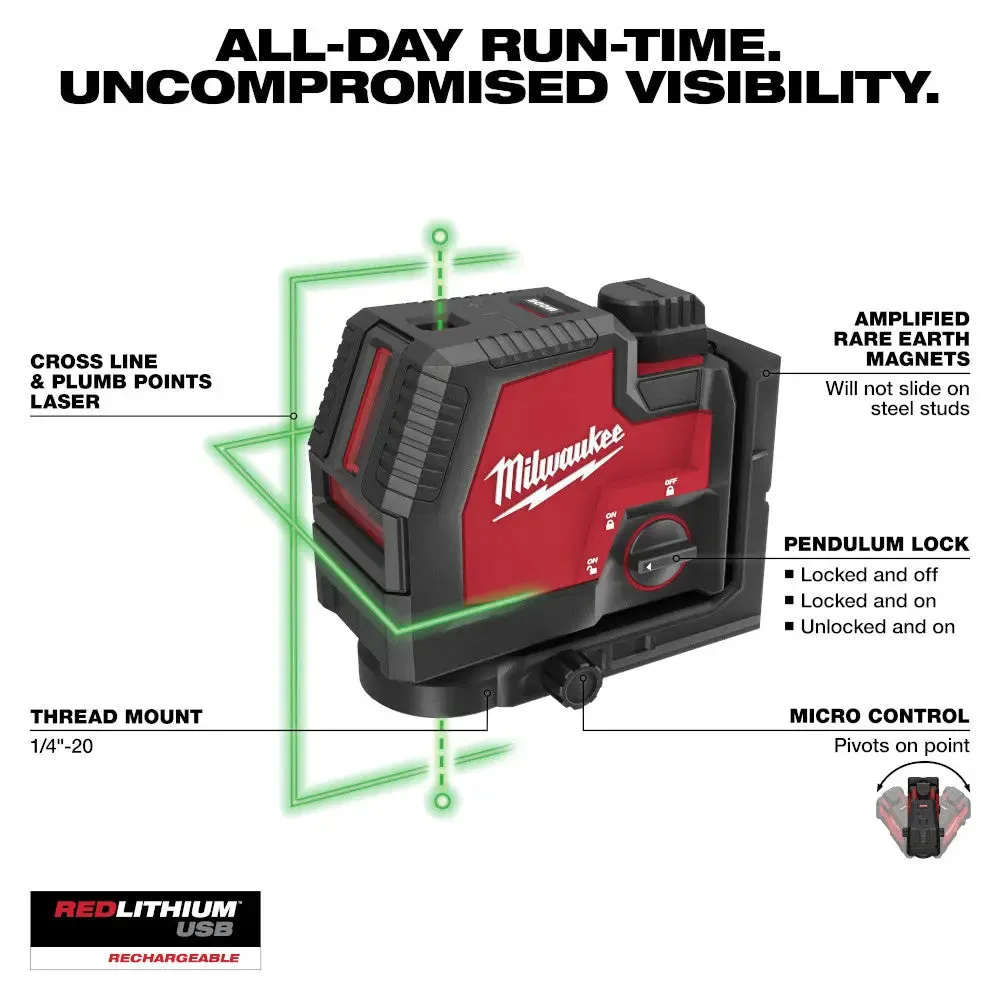

The MILWAUKEE® USB Rechargeable Green Cross Line and Plumb Points Laser is powered by REDLITHIUM™ USB, delivering all day runtime and uncompromised visibility. The high-intensity green beams keep the lines and plumb points visible up to 100' for fast, accurate leveling and alignment. The integrated magnetic bracket features micro control that pivots on point for faster set-up and point to point alignment at long distances. This cross line laser with plumb points features amplified rare earth magnets provide a strong hold onto metal surfaces with integrated screw and nail hang holes that make setup easy and efficient in any environment. Charge the REDLITHIUM™ USB Battery inside the laser via Micro USB or swap it out with additional REDLITHIUM™ USB Batteries for virtually no downtime. The Milwaukee USB Rechargeable Green Cross Line and Plumb Points Laser is covered by a two-year warranty.
Features
- 8-Plus Hour Runtime; Removable, Rechargeable Battery
- High Intensity Green
- Micro Control - Pivots on Point
- 100 ft. Working Range
- 165 ft. Range with Detector
- Accuracy: /- 1/8" @ 33 ft
- 1/4-20 Thread Mount
- Locking Pendulum
- 2" Plumb Point Access with Riser
- Self Leveling: Plus/Minus 4-Degrees Tilt
- IP54 Rating
- 1m Impact Resistance
- Internally Charges REDLITHIUM™ USB Batteries Through Micro-USB Port

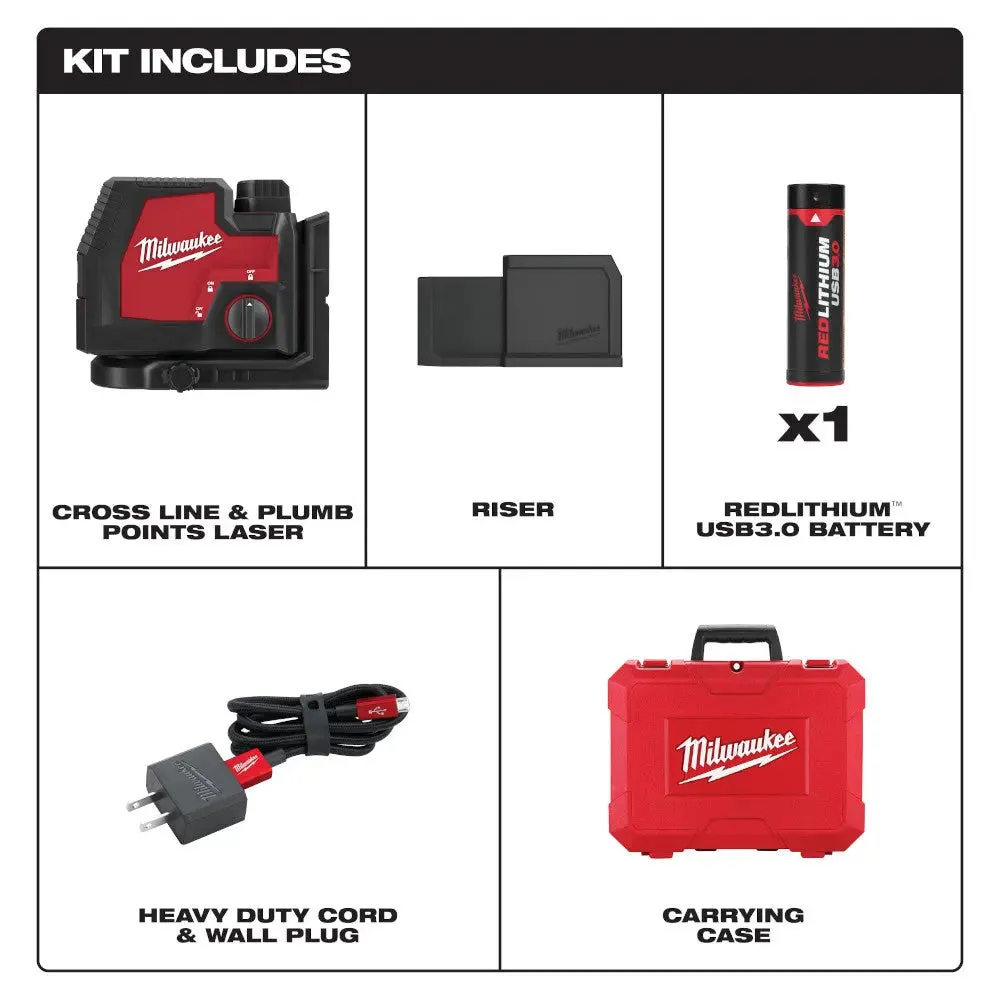

Includes
(1) 3522-21 USB Rechargeable Green Cross Line & Plumb Points Laser; (1) REDLITHIUM USB Battery; (1) Floor Mount; (1) 3FT Heavy Duty USB Cord; (1) Wall Charger; (1) Hard Carrying Case
Warranty
5 Years (Tool), 2 Years (Battery)

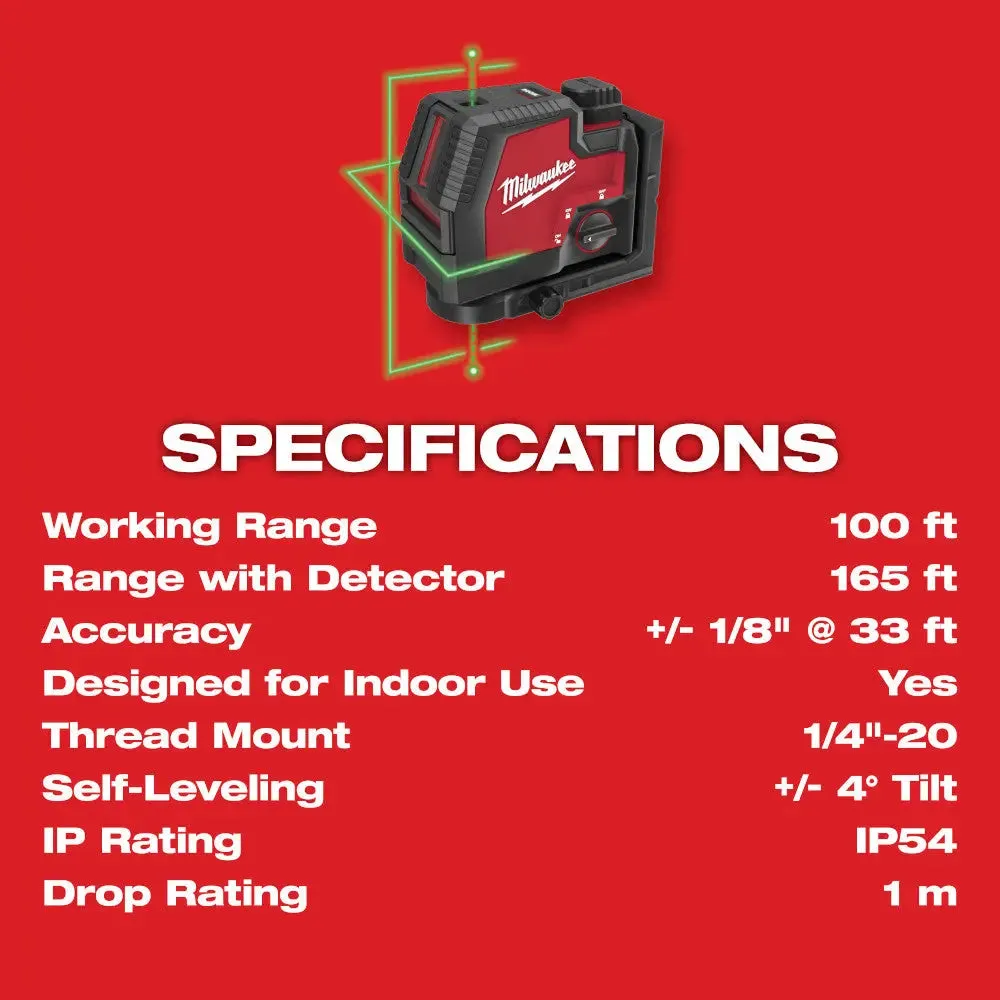

Specifications
| Plumb Up: | Yes |
| Auto Leveling Range: | /- 4 Degrees |

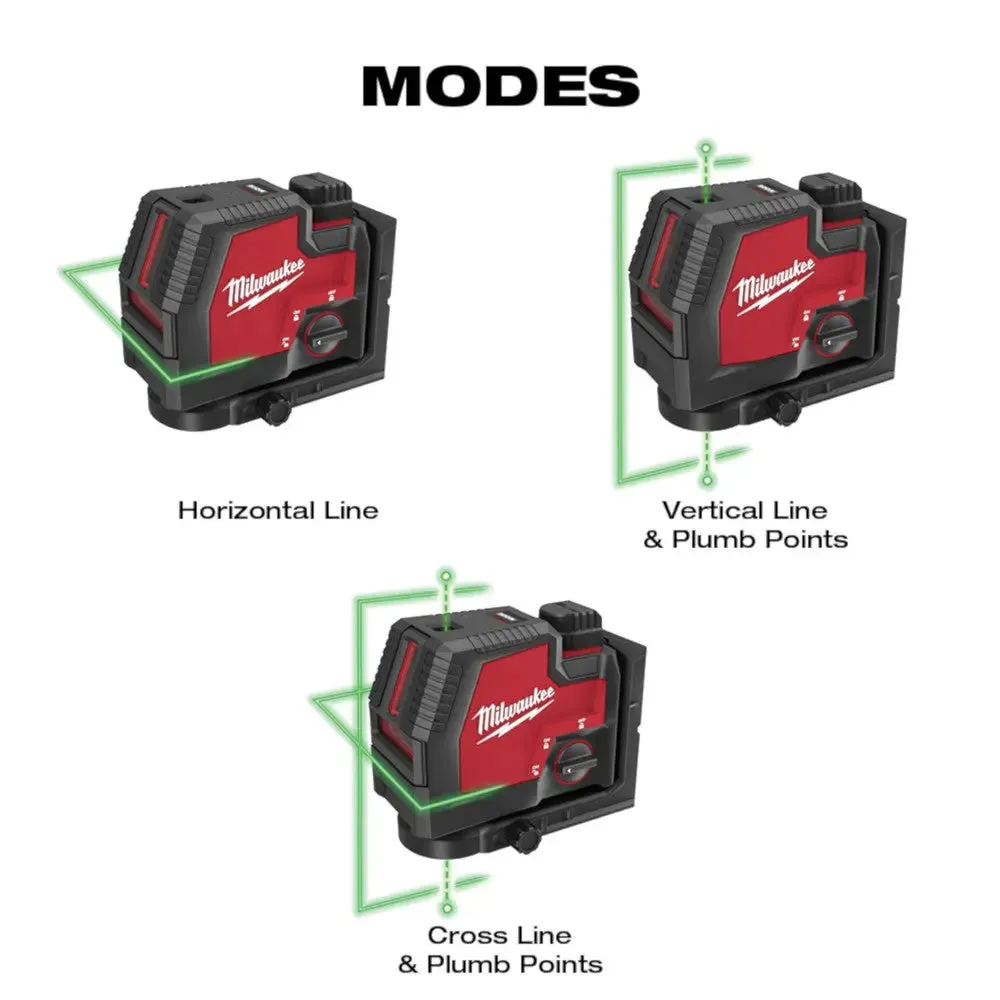

| Laser Projection: | Horizontal and Vertical |
| Batteries Included: | Yes |
| Battery Voltage *: | 4 |
| Beam Type: | Green Cross Line & Plumb Points |
| Tripod Mount Dimensions: | 1/4" - 20 |
| Accuracy: | 1/8" @ 33' |
| Range Without Detector (ft): | 100 |
| Laser Level Type: | Line |
| Plumb Down: | Yes |
| Case Included: | Yes |
| Color Finish: | Red |
| Laser Output: | <1mW |
| Number of Measurements: | 4 |
| Laser Wavelength: | 520nm /- 10nm |
| Self Leveling: | Yes |
| Visual/Audible Indicators: | Yes |
| Number of Dots: | 2 |
| LED Display: | Yes |
| Laser Class: | 2 |
| Base Type: | Magnetic |
| Number of Batteries Required: | 1 |
| Range With Detector (ft): | 165 |
| Mount Options: | Magnetic, Screw/Nail Hole, 1/4-20 Tripod |
| Self Leveling Range Maximum: | /- 4 Degrees |
| Battery Quantity and Size: | (1) REDLITHIUM™ USB |
| Laser Beam Color: | Green |
| Mounting Method: | Wall or Tripod |
| Maximum Beam Distance: | 100' |
| Number of Lines: | 2 |
| Thread Size *: | 1/4" - 20 |
| Interior Range: | 100' |
| Number of Beams: | 2 |
| Battery Size: | Battery Packs |
| Case Material: | Plastic |
| Indoor Outdoor: | Indoor |
| Material *: | Rare Earth; Steel; Glass Filled Nylon; Rubber |
| Leveling Type: | Self-Leveling |
| Laser Usage Environment: | Interior |
| Indoor/Outdoor Use: | Indoor |
| Type: | Laser Level |
