Product Details
＋
Features
- Mitering head swivels to cut any angle 0° - 45° while the work piece remains secured

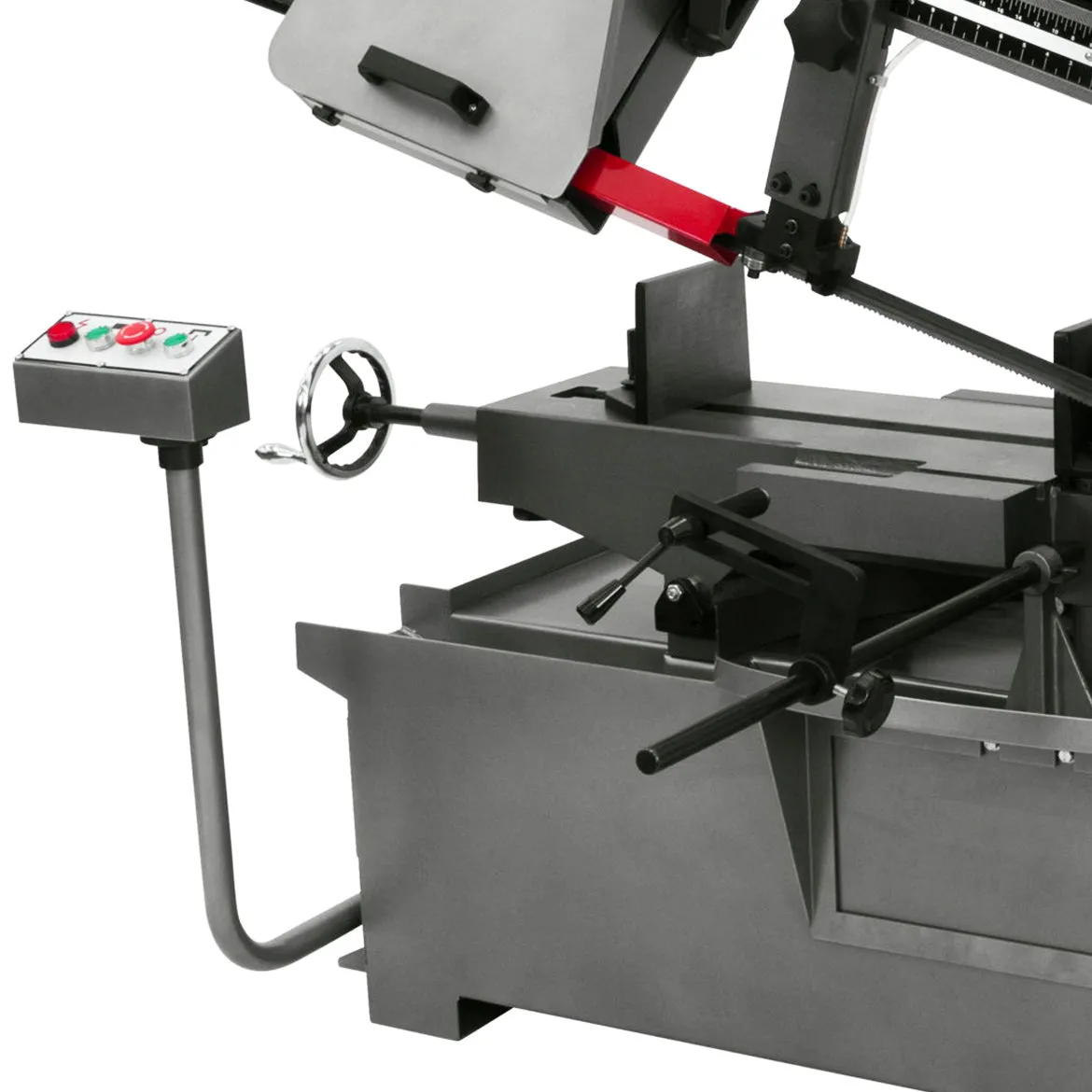

- Swing away control panel houses major saw controls
- Variable speed drive system allows the operator to easily fine tune the blade speed
- Adjustable blade guide with six contact point system that utilizes cam follower bearings mounted on eccentric shafts on both sides of the blades
- The blade rides on two load bearings mounted on a pivot shaft with the side bearings and carbide pads assisting in distributing the load equally
- Downfeed system is controlled by a dual system of counterbalance springs working with a hydraulic cylinder
- Heavy-Duty transmission utilizes hardened and ground gears operating in an oil bath
- Cast Iron blade wheels
- Coolant system
- Adjustable material stop
- 1" Bi-Metal blade
What's in The Box

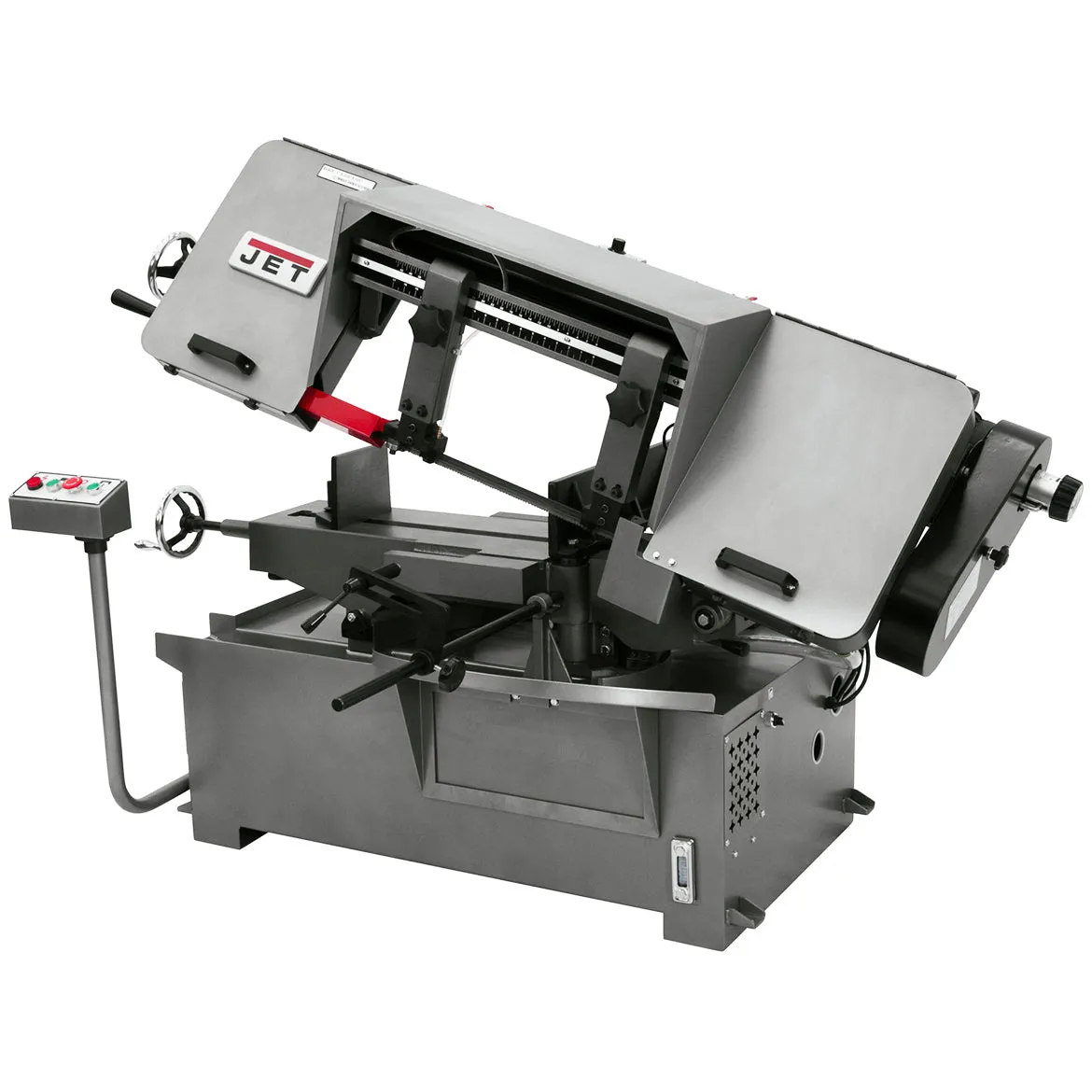

- JET J-7020M 10" x 16" Horizontal Mitering Bandsaw 115/230V 1PH
- Owner's Manual
Warranty
- JET Red Assurance 2-Year Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Model | 414474 |
| UPC | 662756091017 |
| Cutting Capacity (W x D) (In.) | 10 x 16 |
| Round at 90 Degrees (In.) | 10 |
| Round at 45 Degrees (In.) | 8-1/2 |
| Rectangle at 90 Degrees (In.) | 10 x 14 and 2 x 16 |
| Rectangle at 45 Degrees (In.) | 8-1/2 x 9 |
| Vise Swivels (Deg.) | 45° |
| Head Movement (Deg.) | 45° |
| Blade Size (In.) | 1 x .035 x 135 |
| Blade Length (In.) | 135 |
| Blade Wheel Diameter (In.) | 14 |
| Blade Speed (SFPM) | 100 - 350 |
| Bed Height (In.) | 25-1/2 |
| Motor (HP) | 1-1/2 HP, 115/230V, 1Ph |
| Drive | Variable Speed |
| Overall Dimensions (L x W x H) (In.) | 76 x 30 x 48 |
| Weight (Lbs.) | 1,134 |
