Product Details
＋
Features
- For added safety, the J-8203K follows strict guidelines and electrical requirements to be certified by CSA Group
- Solid, one-piece steel, base for extra stability
- Conveniently located on/off switch
- Variable speed drive system (8201VS)
- Gear box design allows wood/metal model saws to be used for a wider variety of metal, wood, non-ferrous metal and plastic cutting applications
What's in The Box

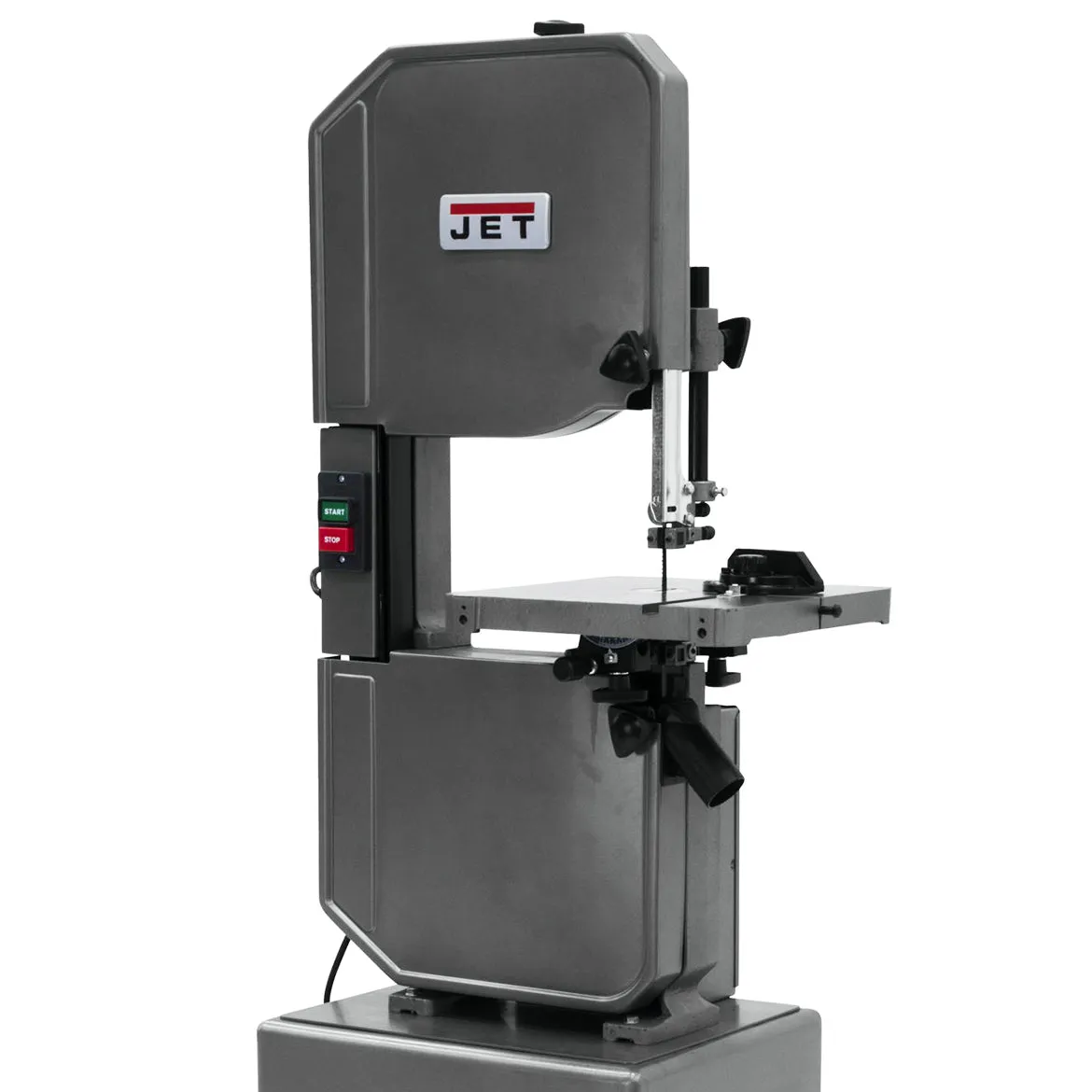

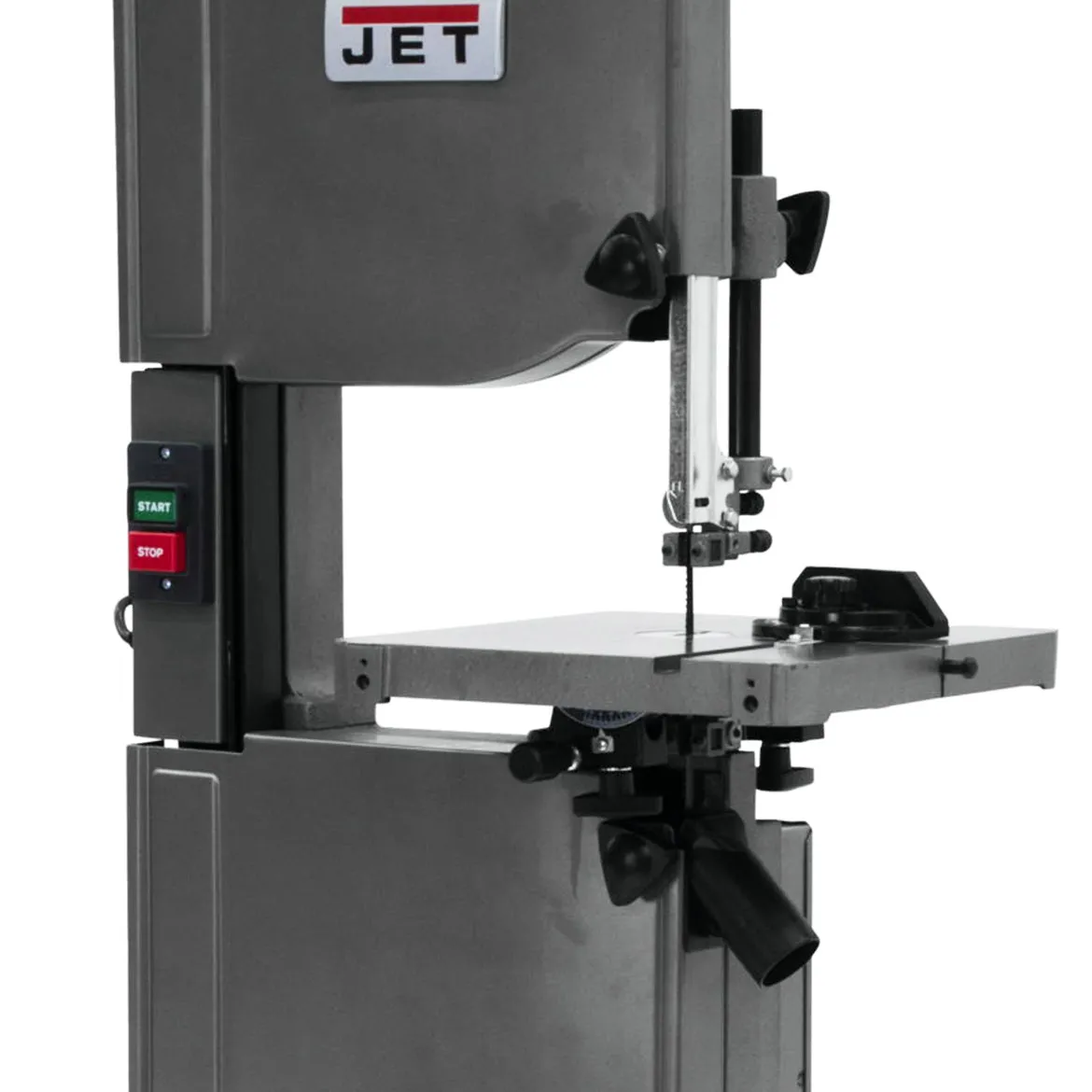

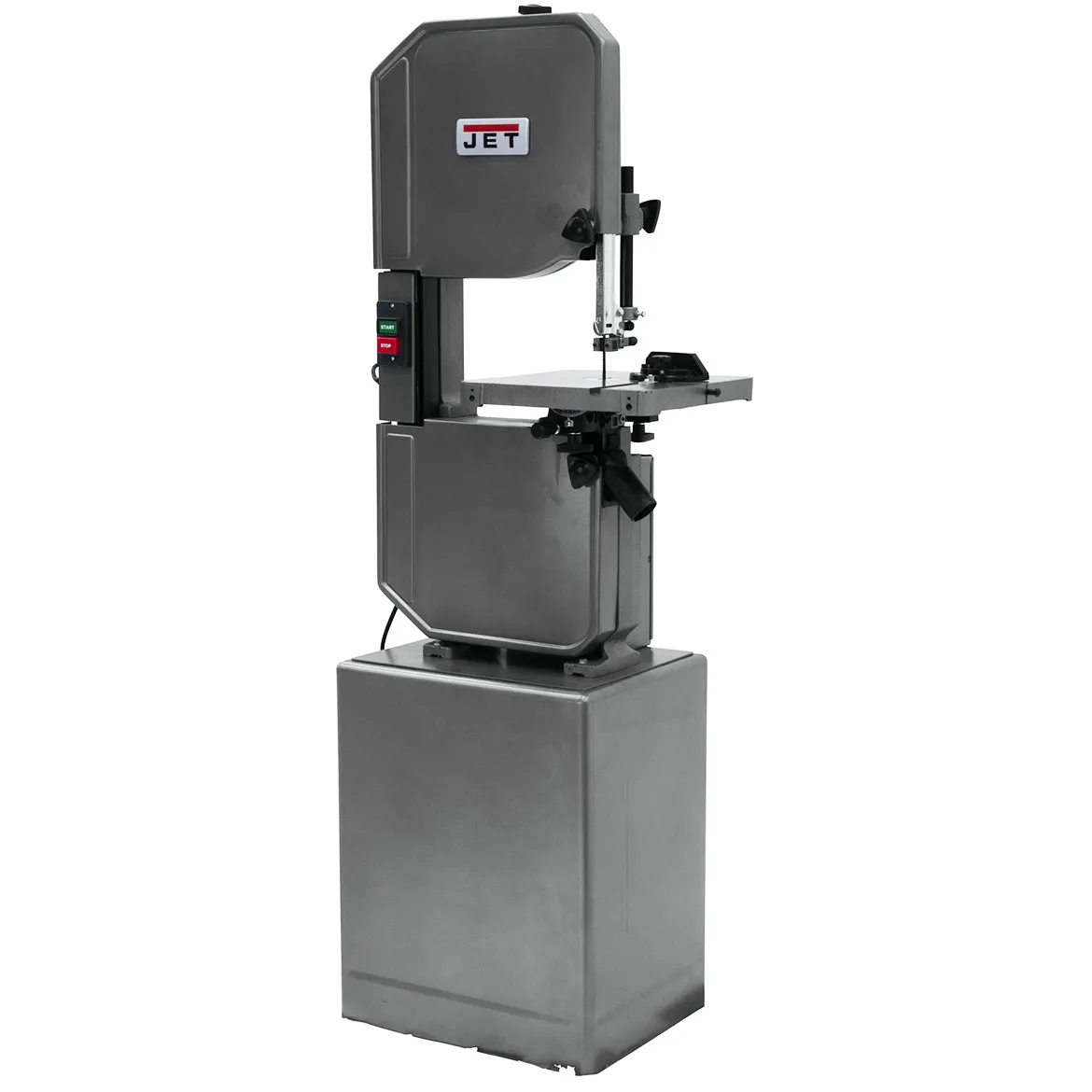

- 14-Inch Metal/Wood Cutting Vertical Bandsaw
- (1) 14-Tpi Metal Cutting Blade
- (1) 6-Tpi Wood Cutting Blade
- Owner's Manual
Warranty
- JET Red Assurance 2-Year Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Model | J-8203K |
| Sku | 414504C |
| Brand | Jet |
| Motor | 1 Hp, 230/460-Volt, 3-Phase |
| Blade Speeds (Metal)(SFPM) | 39, 57, 78, 107, 142, 196, 278 |
| Blade Speeds (Wood)(SFPM) | 3,300 |
| Height Capacity (Max.)(in.) | 6 |
| Throat Capacity (in.) | 12 |
| Table Size (L x W)(in.) | 14 x 14 |
| Table Tilt To Right (Deg.) | 45 |
| Table Tilt to Left (Deg.) | 15 |
| Blade Size (in.) | 3/8 x .025 x 92-1/2 |
| Blade Length (in.) | 92-1/2 |
| Blade Width (Min. - Max.) | 1/8 - 3/4 |
| Table Height (in.) | 44 |
| Overall Dimensions (L x W x H)(in.) | 25-1/2 x 22-3/8 x 73-1/2 |
| Weight (lbs.) | 280 |
