Product Details
＋

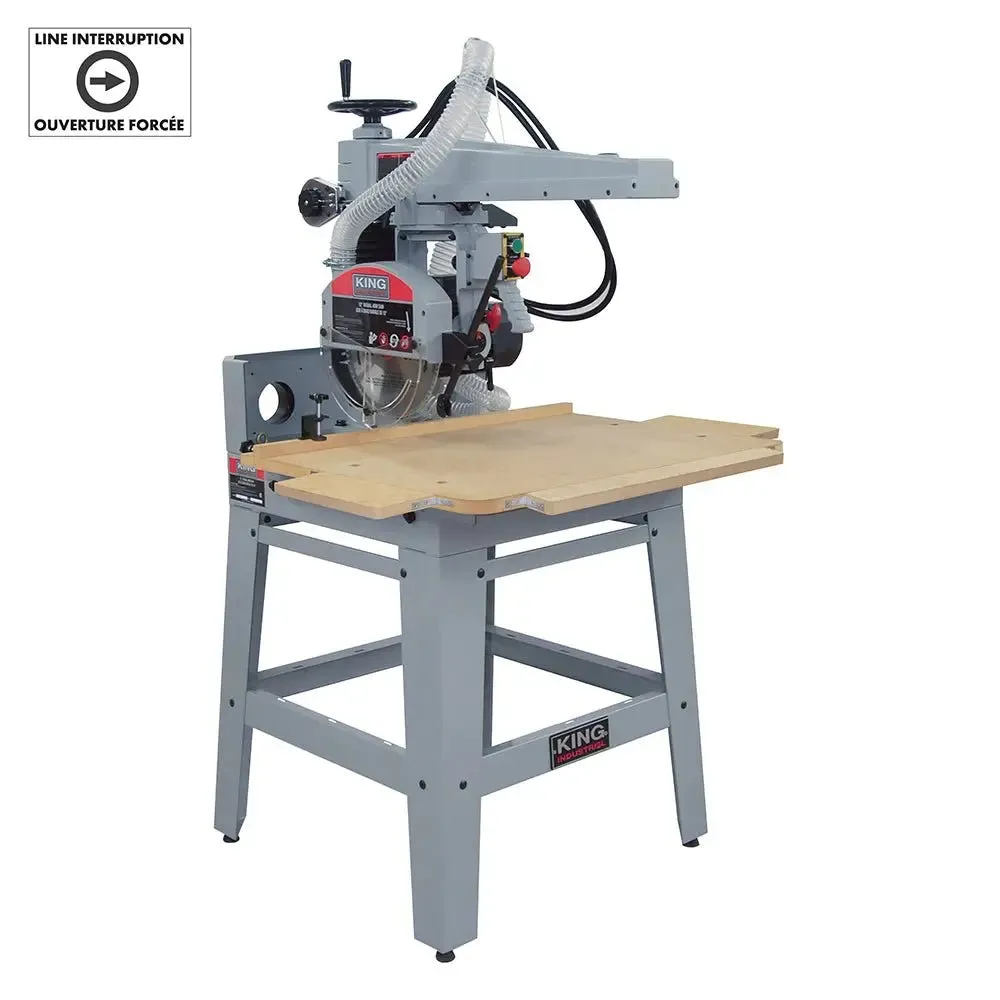

12'' RADIAL ARM SAW
- Powerful 2 HP, 220V single phase motor
- Industrial rated radial arm saw has the versatility to crosscut, bevel cut, miter cut and swivel to a rip position to cut down panels precisely and accurately
- Precision indexing with positive stops at 22.5˚, 45˚ and 90˚ for accurate bevel cuts
- Automatic built-in mechanical blade brake system
- Oversized MDF table top
- Magnetic safety switch with keyed lock preventing unauthorized use of the radial arm saw
- Two 4" dust chute for dust collector hook-up
- Includes 12" negative rake blade, adjustment wrenches and hex. keys
- Adjustable return spring retracts motor and carriage
- MODEL KC-12RAS
- BLADE DIAMETER 12"
- BLADE ARBOR (WITH 1" BUSHING) 5/8"
- MAXIMUM DEPTH OF CUT (10"/12")2" / 3"
- MAXIMUM DEPTH OF CUT AT 45˚ (10"/12")2" / 3"
- MAXIMUM CROSSCUT CAPACITY 16"
- MAXIMUM RIP CAPACITY 26-3/8"
- DADO CAPACITY 13/16"
- MDF TABLE SIZE 35-3/8" x 27-1/2"
- HEIGHT OF TABLE FROM FLOOR 36-3/4"
- MOTOR 2 HP, 8.5 Amp.
- VOLTAGE 220V, 1 phase, 60 Hz
- ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT35-3/8" x 43" x 71" / 395 lbs
- PACKAGE DIMENSIONS (LXWXH) / WEIGHT30" x 37-3/4" x 34" / 485 lbs
