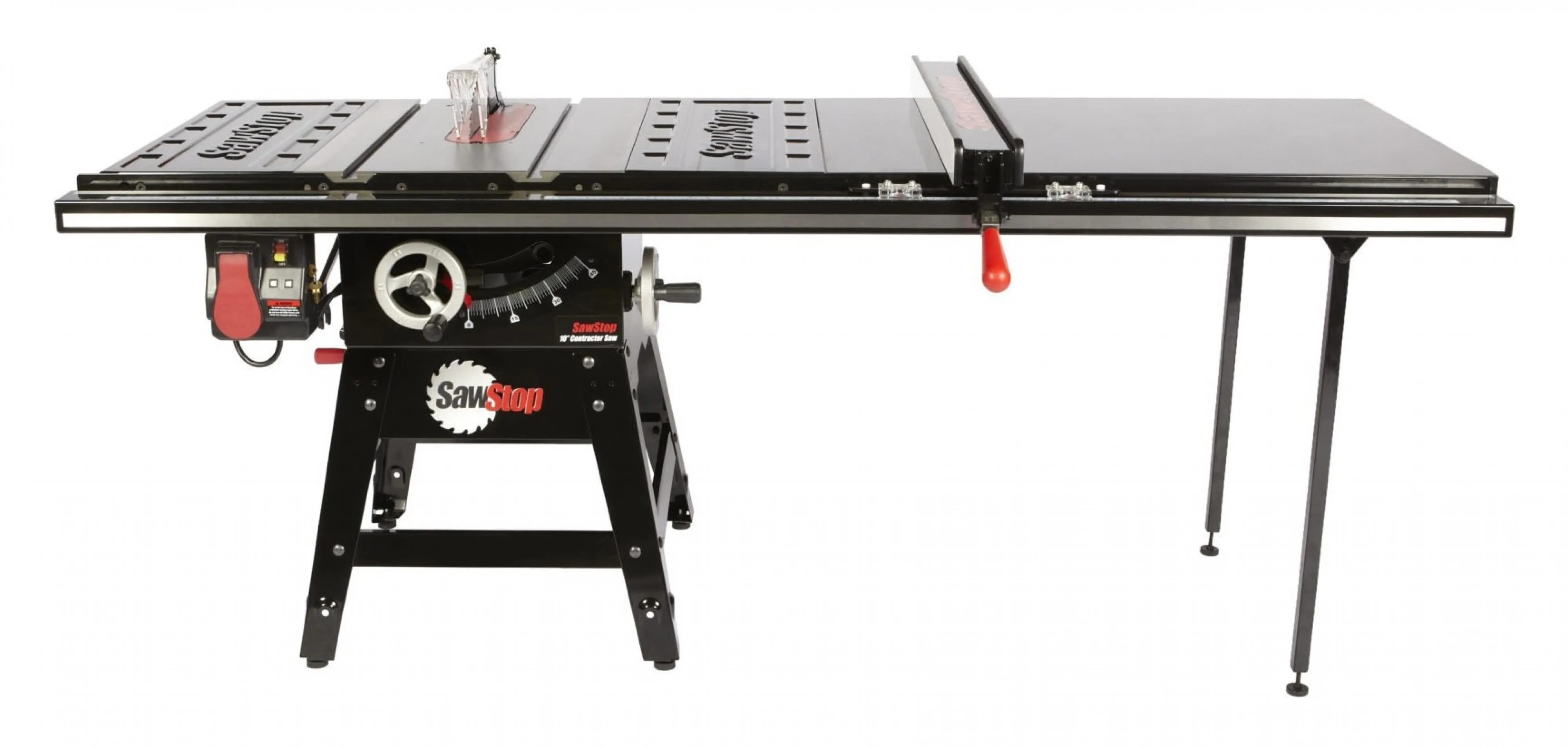

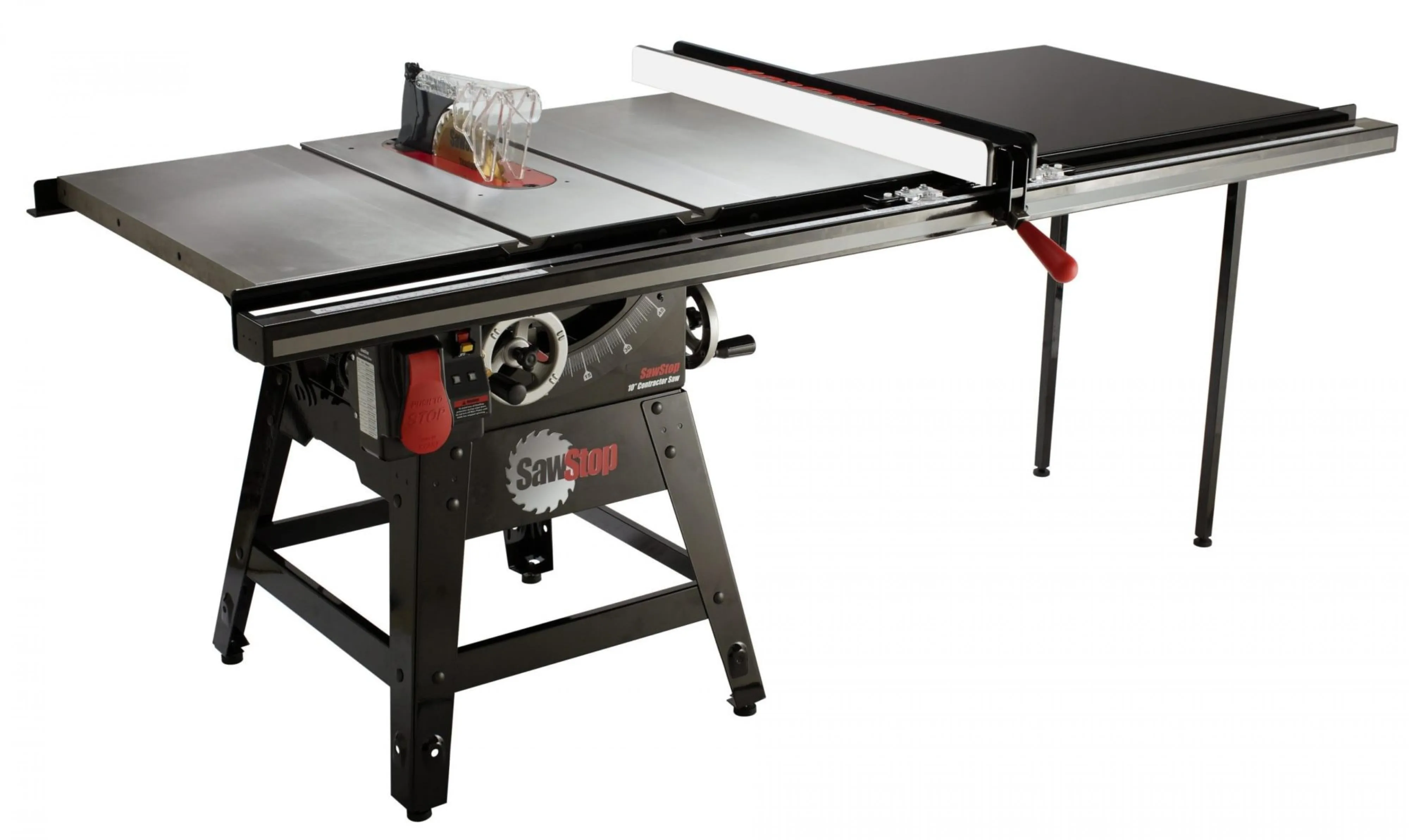

The SawStop® Contractor Saw offers versatility and safety.
52-INCH T-GLIDE FENCE ASSEMBLY: The 52-inch T-Glide Fence & Rail are made of heavy-gauge steel for sure lockdown and reliably square cutting for years without deflection.
CONFIGURABILITY: Over 150 unique configurations, makes the Contractor Saw the most configurable SawStop saw. Adding a mobile base, sliding crosscut table or router table, are just a few of the ways to make this your ideal saw.
UNIVERSAL PERFORMANCE: The Contractor Saw offers versatility, reliability and safety for a variety of users. The cast iron table top (Cast Iron Wing Assembly, CNS-CIWA, sold separately) creates a better-than-hybrid performance in the shop at an affordable price.
SAWSTOP PATENTED SAFETY SYSTEM: Stops a spinning blade on contact with skin. The blade stops in less than 5 milliseconds, and drops below the table, minimizing a potentially life-altering injury to a mere scratch.
RELIABILITY: The Control Box houses the on-off switch, power paddle, and on-board computer, and constantly checks that all systems are working to reliably keep you safe.
UNMATCHED QUALITY: The trunnion and arbor are built for precision, strength and stability. Poly v-ribbed belts reduce vibration and help ensure a great cut. Table flatness is measured diagonally at 0.010” maximum gap.
FEATURES
INCLUDED ITEMS
SPECIFICATIONS
- -
52" Rip Capacity52” T-Glide Fence Assembly
-Motor Option(s) (60Hz TEFC):1.75 HP available
-Overall saw dimensions 52 in:85 1/4" W x 45" D x 34 3/4" H
-Motor Configuration(s):CNS175: 1.75 HP, 120v, 14 A (user config. to 220v w/optional kit available for purchase).
- -
Saw body footprint:25 3/4" W x 27" D (w/stand installed)
-Cast iron table:20″ W x 27″ D
-Cast iron table (w/ extension wings):44″ W x 27″ D
-Extension wings:12″ W x 27″ D Stamped Steel (optional cast iron for purchase)
-Extension table 52 in:40 1/8″ W x 27″ D
- -
Shipping weights - w/ 52 in fence systems:373 lbs (4 boxes)
-Shipping dimensions (saw body only):35" W x 30" D x 20" H
-Shipping weight (approx.):240 lbs (table saw only)
- -
Assembled weights - w/ 52 in fence systems:335 lbs
-Weights - table saw only:225 lbs
-Weights - (optional cast iron wings):35 lbs each
- -
Blade:40-tooth, prof. grade, 5/8″ arbor
-Blade diameter:10"
-Blade tilt:Left
-Blade kerf:0.118″ (3mm)
-Blade plate thickness:0.078″ (2mm)
-Max. depth of cut, blade at 0º:3 1/8″
-Max. depth of cut, blade at 45º:2 1/4″
-Max. rip, left of blade (w/36” or 52” T-Glide Fence):12 1/2"
-Max. rip, right of blade (w/52” Fence):52 1/2" (w/optional 52" rails)
- -
Dado diameter:8" (requires dado brake cartridge & insert)
-Dado max. width:29/32”
-Arbor diameter at blade:5/8"
-Main bearing size:62mm OD x 30mm ID
-Second bearing size:52mm OD x 25mm ID
-Table in front of blade (max. elevation):10 5/8"
-Table behind blade (max. elevation):7 1/8
-Arbor Runout:0.001″ Maximum allowable runout
-Table flatness measured diagonally:0.016″ Maximum gap
- -
Blade alignment with miter slot:0.010″ Maximum displacement
-Deviation of miter gauge indexing stops from actual:±0.25º
-Alignment between splitter and blade:0.010″ Maximum difference
-Miter slots T-shaped:3/4″ at top, 1″ at bottom, 3/8″ deep
-Miter slots center:11 1/8″ center-to-center
-Miter slots info:5 1/2″ (arbor flange to center of right slot)
- -
Dust collection port diameter:4"
-Riving knife / splitter thickness:0.090" (2.3 mm)

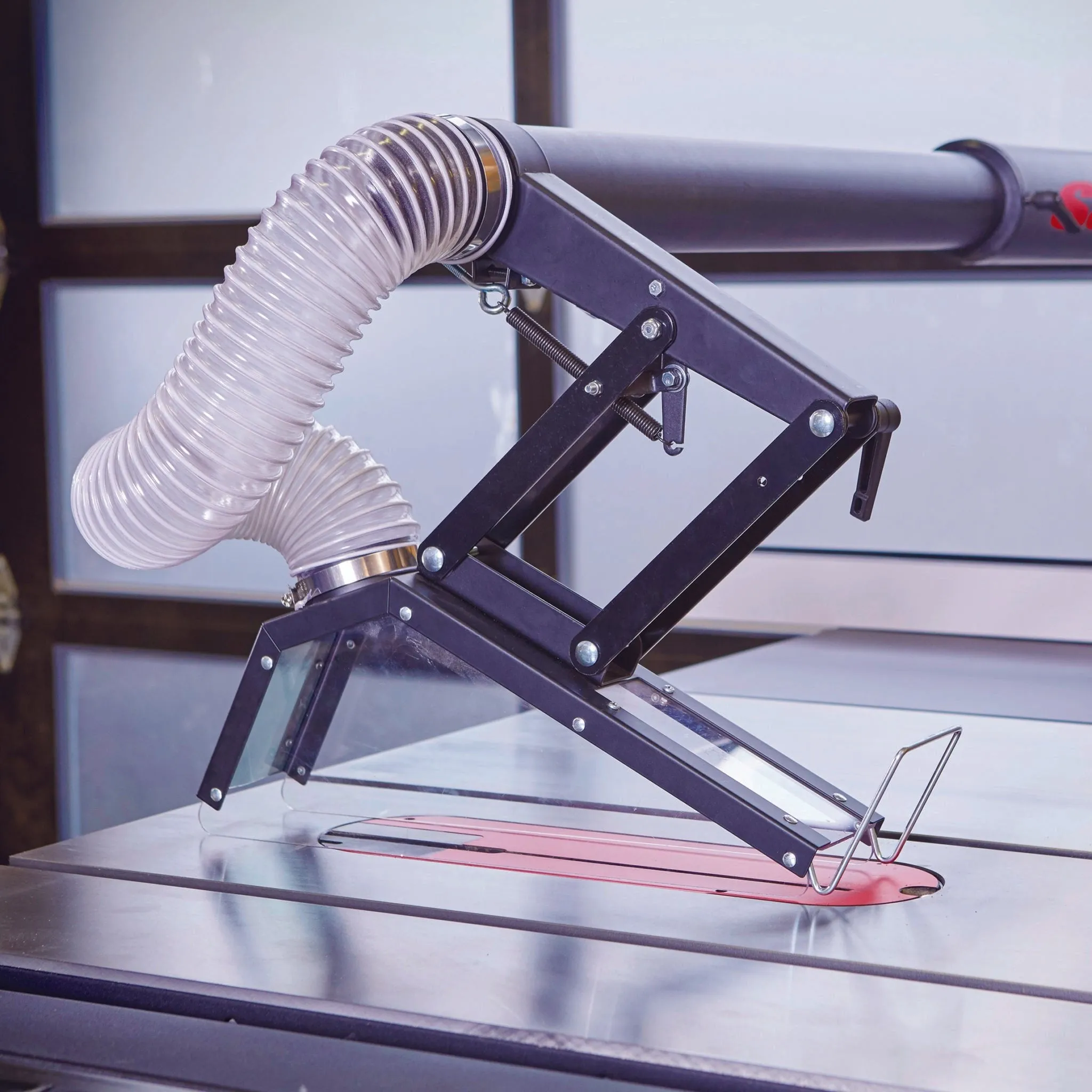

-Blade guard:Standard polycarbonate, extends 1″ right of blade (opt dust guard for purchase)
-Insert:zero clearance, phenolic core, melamine surfaces
-Hand wheels:6″ diameter, cast alum. w/ ABS handle
-Belts:V-ribbed belt – static dissipative
