Product Details
+
Features
- APPLICATION: Ensure the air pressure being supplied to all nailers is sufficient, and that the required PSI remains constant - even if the compressor is 200 or more feet away

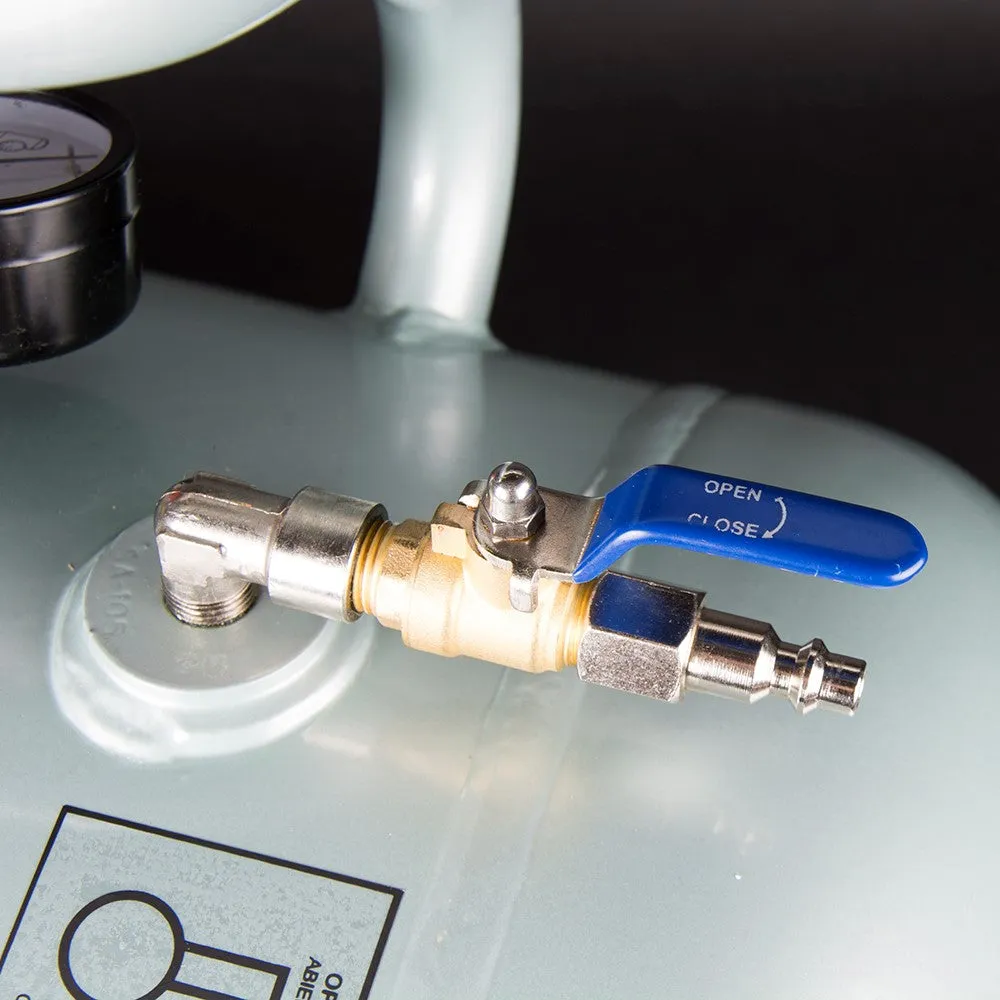

- SHUT OFF: Industrial ball (Shut-off) valve on input allows tank to be filled and disconnected from compressor without it draining itself
- CAPACITY: 10-gallon capacity ensures sufficient pressure to power five or more nailers at the same time
- COUPLERS: 5 quick connect couplers (4 unregulated 1 regulated) allow for easy one handed connections of hoses and/or splitters

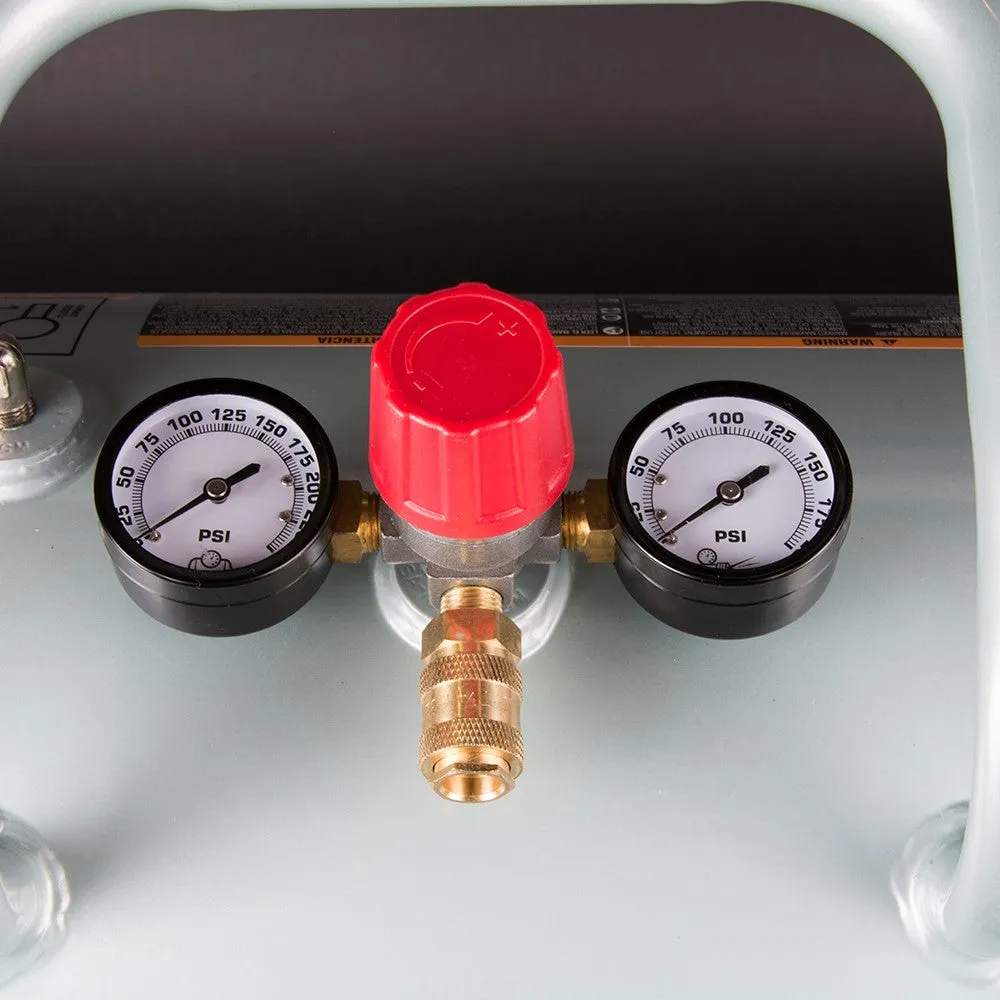

- GAUGES: Industrial pressure gauges are encased in steel for high durability
- DURABILITY: Angled steel legs provide additional support, stability, and increase durability despite the abuse endured by hostile jobsite use
- CERTIFICATION: Certified by the American society of mechanical engineers (ASME), ensures compliance with laws and regulations of all U.S. states
- ROLL CAGE DESIGN: Protects regulator and gauges
- WARRANTY: Covered by Metabo HPT's 1-Year Tool Warranty
What's in The Box

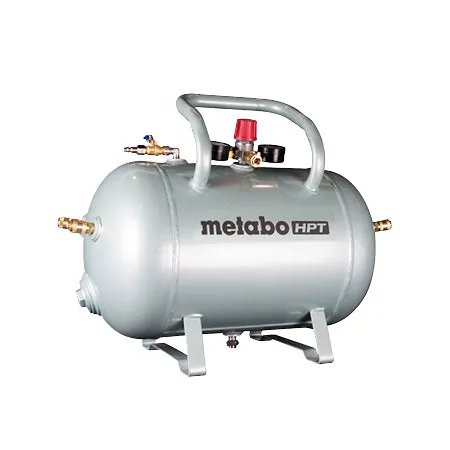

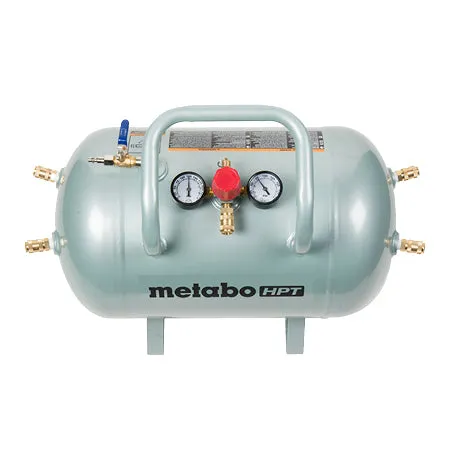

- 10 Gallon ASME Certified Reserve Air Tank | Metabo HPT (UA3810AB)
- (4) 1/4" Quick Connect Couplers with 3/8" NPT (889021)
- (1) 1/4" Quick Connect Coupler [located on Regulator] with 1/4" NPT (888020)
- (1) Safety Relief Valve (889014)
- (1) Industrial Tank Pressure Gauge (889015)
- (1) Industrial Regulated Pressure Gauge (889016)
- (1) Industrial Ball (Shut-Off) Valve on Input (889019)
- (1) 1/4" Industrial Plug (889018)
- Owner's Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
Sku | UA3810AB |
Brand | Metabo HTP |
Tank Type | Horizontal Barrel |
Tank Capacity | 10-Gallon (ASME) |
No. of Outputs | Five (4 Unregulated 1 Regulated) |
Tank Pressure Gauge | Yes - Installed |
Regulated Pressure Gauge | Yes - Installed |
Coupling Sockets | 1/4" Industrial x 5 |
Max Allowed Working Pressure | 175 PSI |
Input Shut-Off Valve | Yes - Installed |
Safety Release Valve | Yes - Installed |
Weight | 40 lbs |
