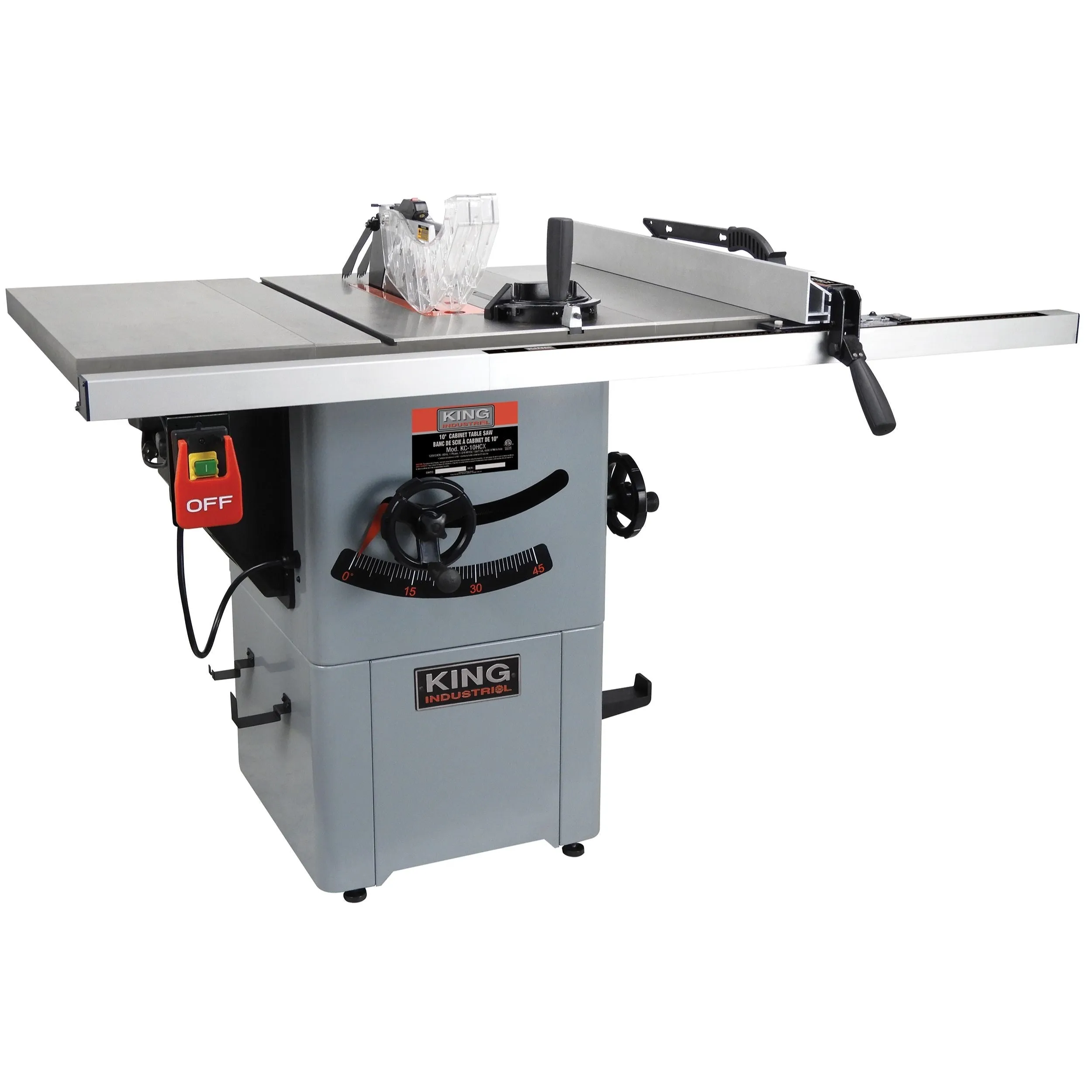

Product Details
＋
- Powerful 1.75 HP 120V/240V belt driven dual voltage motor
- Prewired for 120V operation
- 30" Rip capacity
- Line interruption safety switch with reset
- Precision ground cast-iron table and cast-iron extensions tables measure a total of 44" x 27"
- Riving knife blade guard system with anti-kickback fingers for maximum operator safety
- Table has "T" slots for miter gauge and beveled front edge
- Integrated dust collection system with 4” dust chute
- Comes with 10" x 40 tooth carbide tipped saw blade, cast-aluminum miter gauge, Duo-fence with horizontal and vertical position anodized aluminum fence, push stick, standard table insert, blade wrench, open end wrench and adjustment hex. keys.- MODELKC-10HCX- BLADE DIAMETER10" - BLADE TILTSLeft- DEPTH OF CUT AT 45˚2-3/16"- DEPTH OF CUT AT 90˚3-1/8"- TABLE SIZE WITH EXTENSIONS44" x 27"- DIAMETER OF ARBOR5/8"- ARBOR SPEED4,500 RPM- MOTOR1.75 HP, 15 Amp. @ 120V, 7.5 Amp. @ 240V- VOLTAGE120V/240V, 1 phase, 60 Hz- PREWIRED120V- ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT61” x 39” x 42” / 236 lbs- PACKAGE DIMENSIONS (LXWXH) / WEIGHT45-1/4” x 30-1/2” x 22-3/4” / 244 lbs- UPC7 72995 01653 2.
