Product Details
＋
Features

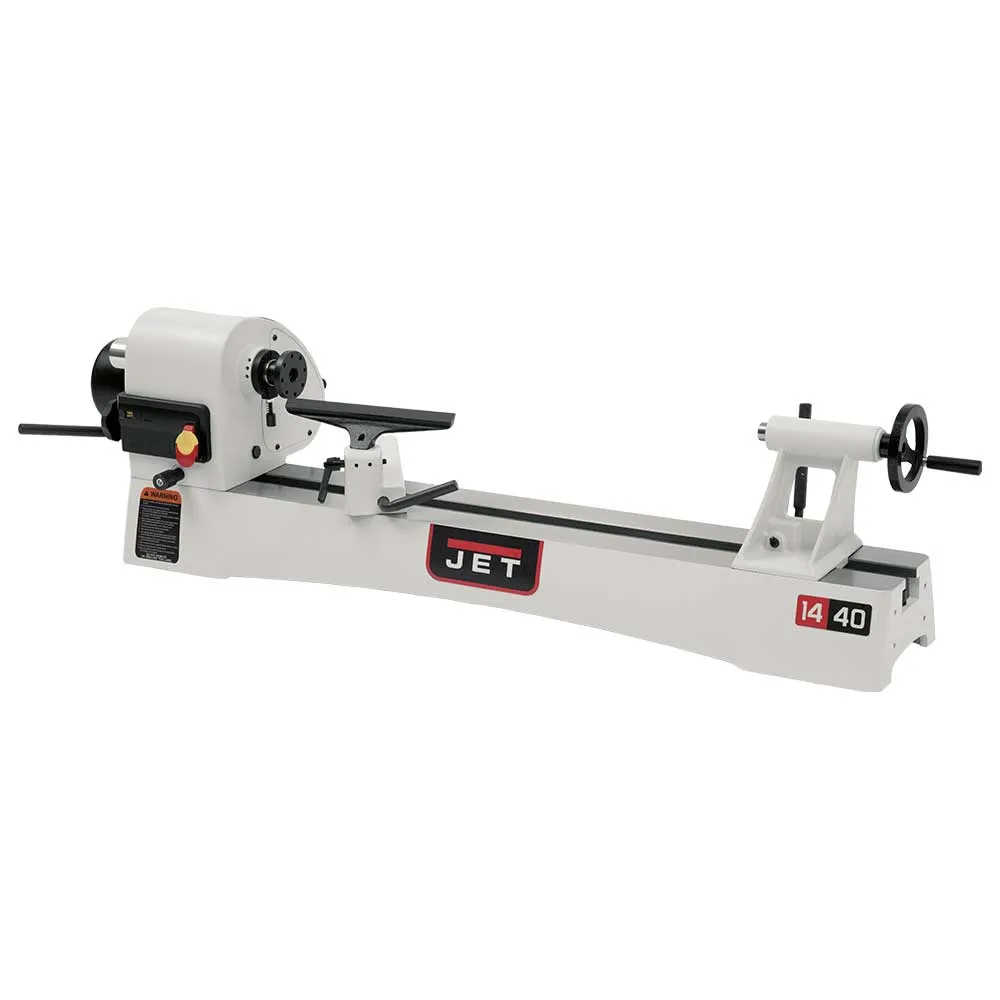

- Do you want a lathe that’s as versatile as your turning? The 1440 lathe from JET can be tailored to accomplish a wide range of projects. With a sliding and pivoting headstock, variable speed, and many other great features this lathe meets the needs of woodturners. Experience the 1440 lathe and see how Versatility Takes Shape.

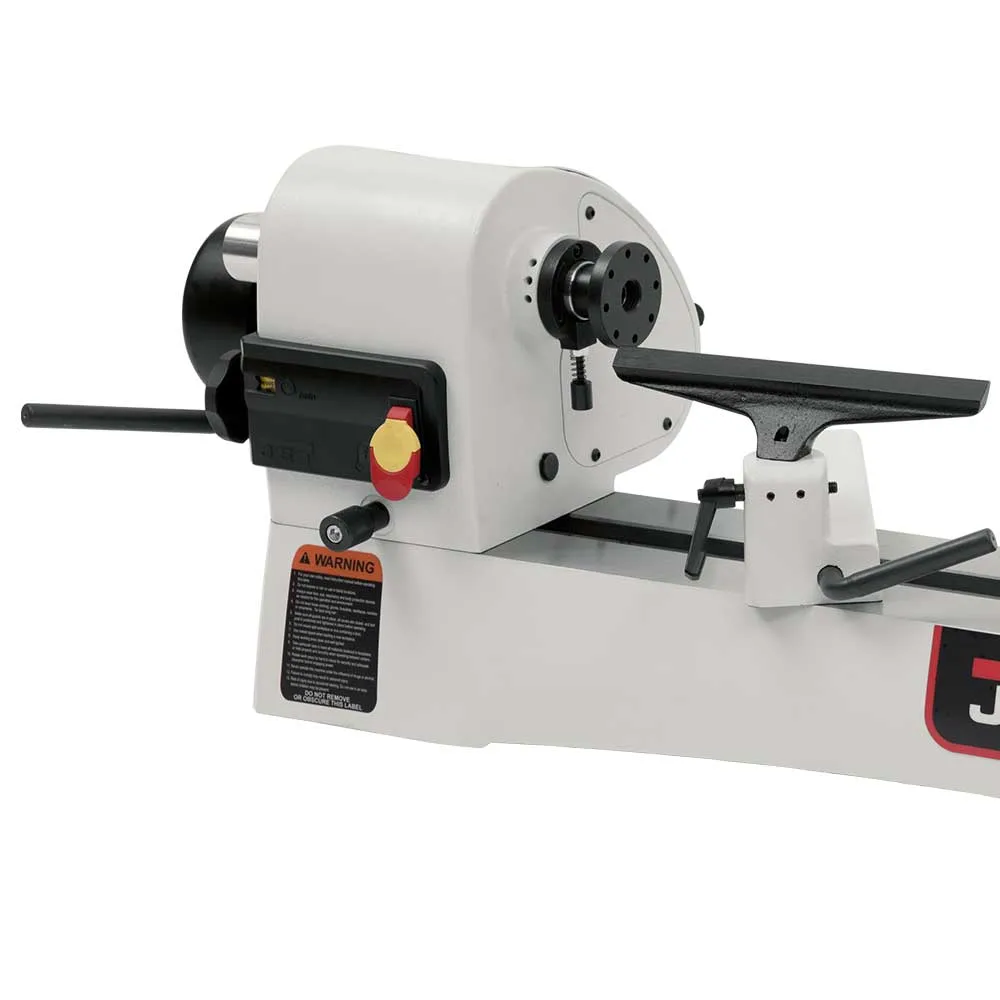

- Sliding headstock pivots 360 degrees with 7 positive locking positions at 0, 30, 60, 90, 120, 180, and 270 degrees for maximum variability and optimal user comfort
- Variable speed from 400-3000 RPM
- Positive locking tool rest with redesigned clamping
- Optional extension bed takes the capacity to 60" between centers

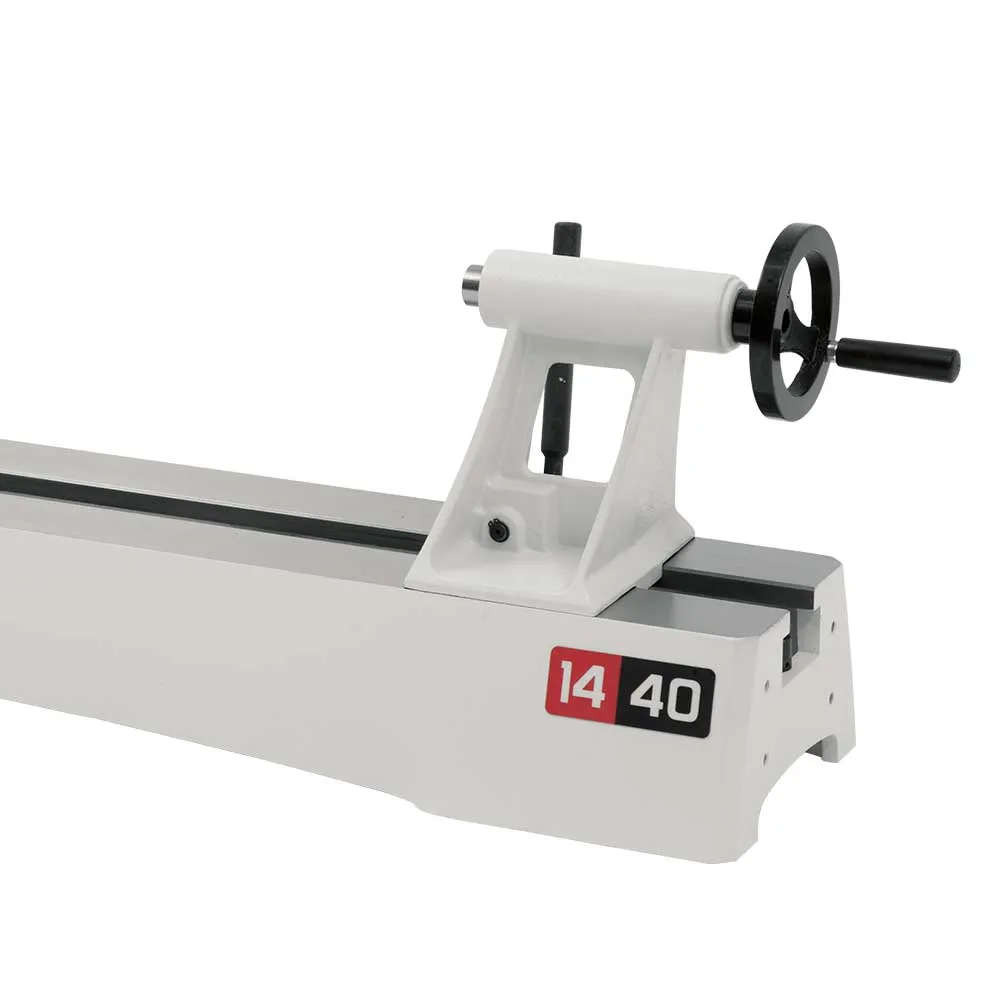

- Acme thread in tailstock
- Improved tailstock quill locking with anti-rotation key
- Easy-to-read RPM display
- CSA Certified
What's in The Box
- JWL-1440VS 14" x 40" Benchtop Wood Lathe 719400
- Owner's Manual
Warranty
- JET Red Assurance 2-Year Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Style (Type) | Benchtop |
| Swing Over Bed (In.) | 14-1/2 |
| Swing Over Tool Rest Base (In.) | 11 |
| Distance Between Centers (In.) | 40 |
| Headstock Movement | Sliding/Pivoting |
| Spindle Bore (In.) | 3/8 |
| Tailstock Bore | 5/16 |
| Spindle Taper | MT2 |
| Quill Taper | MT2 |
| Quill Travel (In.) | 4-1/4 |
| Spindle Thread (In./TPI) | 1"/8 TPI |
| Spindle Speeds | Variable |
| Speed Range | 400-3000 |
| Number of Indexing Positions | 36 |
| Centerline of Spindle to Floor (In.) | 44 |
| Outboard Turning | Yes |
| Bed Construction | Cast Iron |
| Motor Power (HP) | 1 |
| Motor Phase (PH) | 1 |
| Motor Voltage (V.) | 115/230 |
| Prewired Voltage (V.) | 115 |
| Motor Amps | 11/5.5 |
