Product Details
＋
Features
- Dovetailed Miter Slots

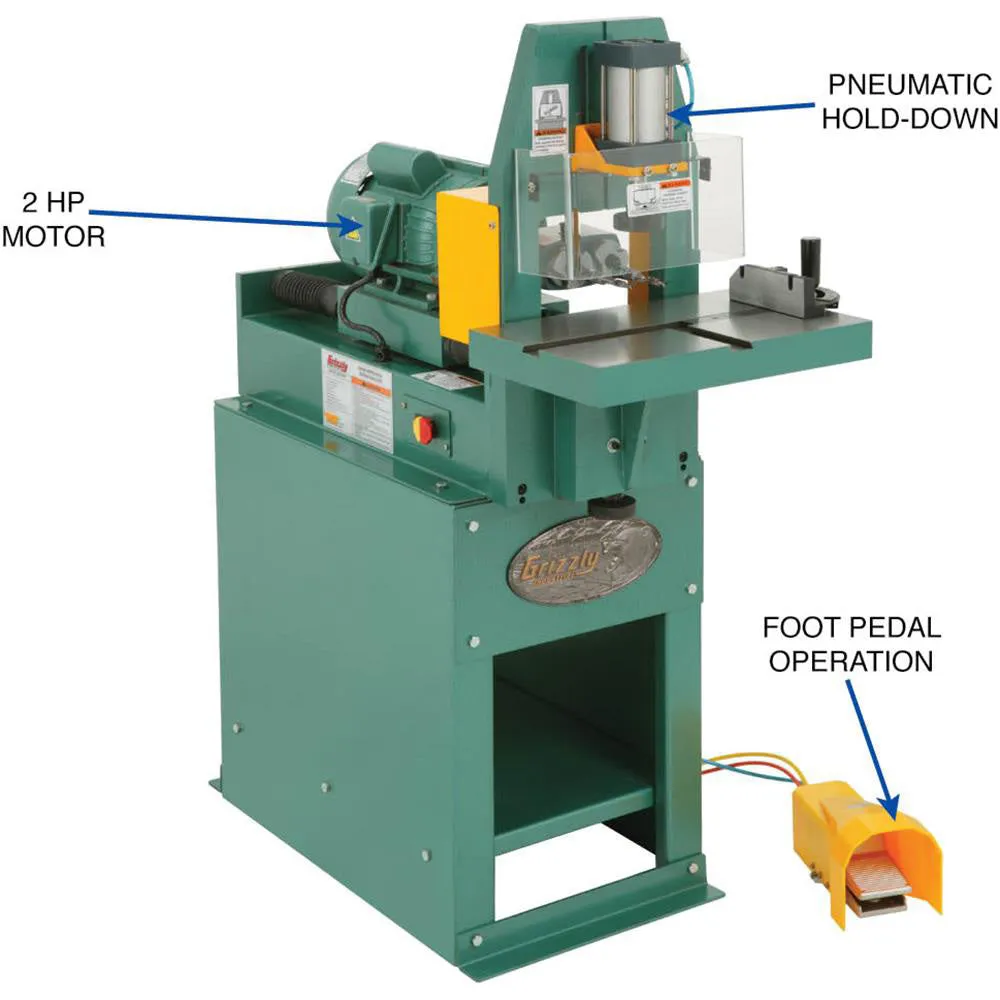

- Pneumatic Spindle Travel
- Dovetailed Vertical Table Ways
- Pneumatic Foot Activator
- Pneumatic Clamp, 2 1/4 in diameter Pad
What's in The Box
- Horizontal Boring Machine - G4185
- Owner's Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | G4185 |
|---|---|
| Brand | Grizzly |
| Motor | 2 HP, Single Phase |
| Amps | 12 |
| Table Size | 15-3/4 in(wide) x 9-3/4 in(deep) |
| Spindle Travel | 3 in |
| Table Travel, Vertical | 3-1/2 in |
| Drill Bit Capacity | 9/16 in |
| Spindle Speed | 3450 RPM |
| Air Consumption | 0.5 CFM at 90 PSI |
| Maximum SPM | 12 at 90 PSI |
| Item Dimensions(inches) | 15 W x 37-1/4 D x 47-1/2 H |
| Weight | 360 lbs |
