Product Details
＋
Features

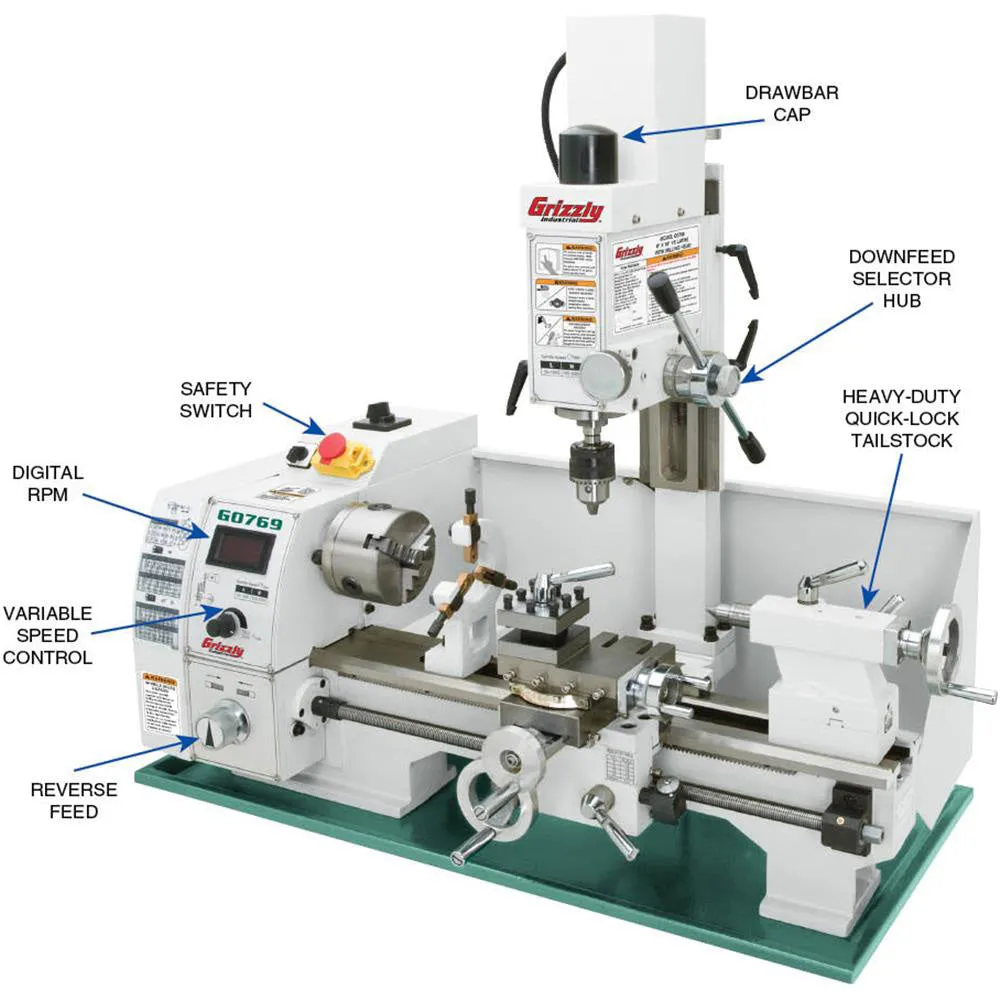

- Variable-speed lathe and mill spindles
- Lathe spindle speed DRO
- Fine and coarse mill spindle downfeed
- Lathe cuts left and right-hand threads
- Heavy-duty quick-release tailstock
What's in The Box

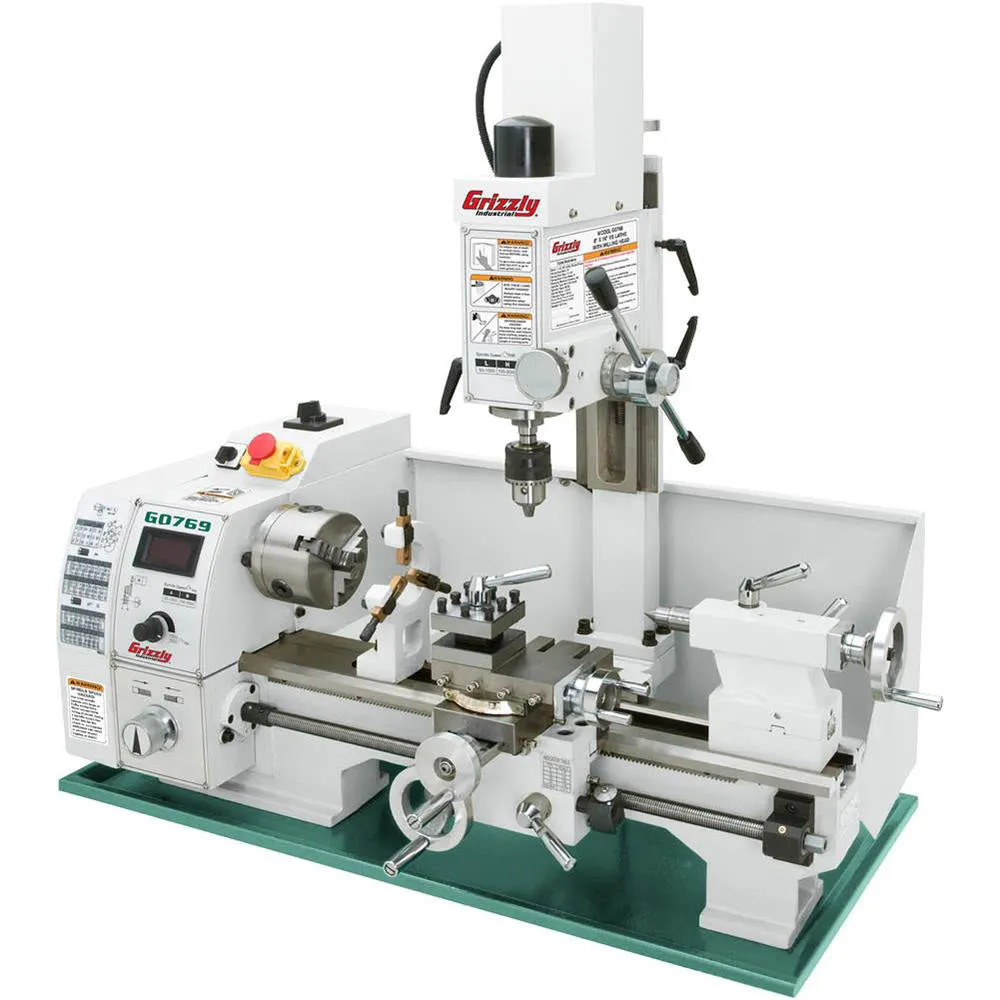

- 8 in x 16 in Lathe with Milling Head - G0769
- Owner's Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | G0769 |
| Brand | Grizzly |
| Motor | 600W (3/4 HP) |
| Volts | 110V |
| Spindle | Bore 0.787 in, Taper MT 3 |
| Spindle Speed Ranges | Low 50-1000, High 100-2000 RPM |
| Travel | Compound rest 2-1/8 in, cross slide 3 in |
| Tail-stock | Quill travel 2 in, taper MT 2 |
| Feed Speeds | (2) 0.0037 in - 0.0068 in |
| Inch Threads | (15) 9-44 TPI |
| Metric Threads | (12) 0.4-3.0mm |
| Item Dimensions(inches) | 36 W x 20 D x 34 H |
| Weight | 287 lbs |
