Product Details
＋
Features
- Requires only 110-volt, single-phase power for easy plug-in almost anywhere.
- Handles a maximum capacity of 2.5” OD tubing, 2” OD Chromalloy, 2” square tubing, and 2” schedule 40 pipe.
- Maximum centerline of 8”, depending on material’s OD.
- Bends up to 200°, allowing for true 180° bendswithout having to re-pin the die set.
- Takes only 4 complete pushes to reach 180°.

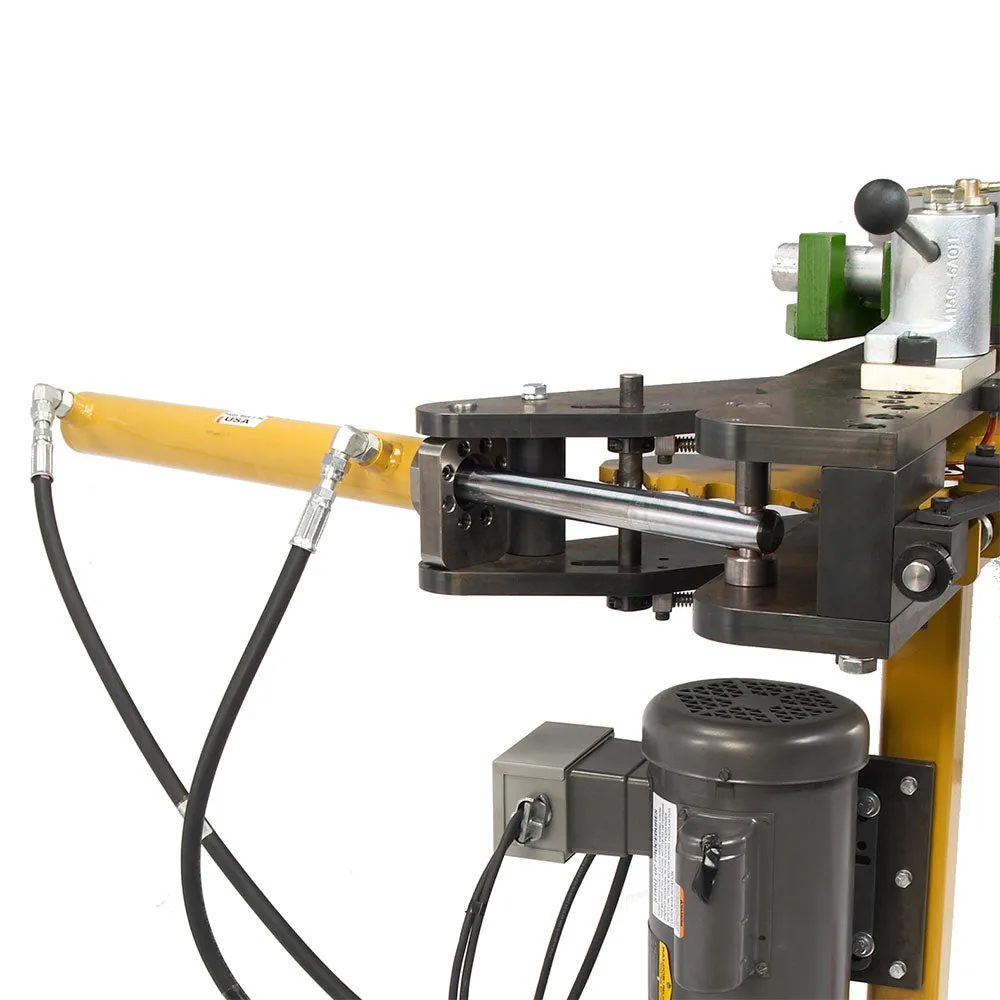

- Built-in anti-spring back mechanism lets hydraulic cylinder retract without losing its place in the bend.
- Covered by a 1-year parts warranty.
What's in The Box

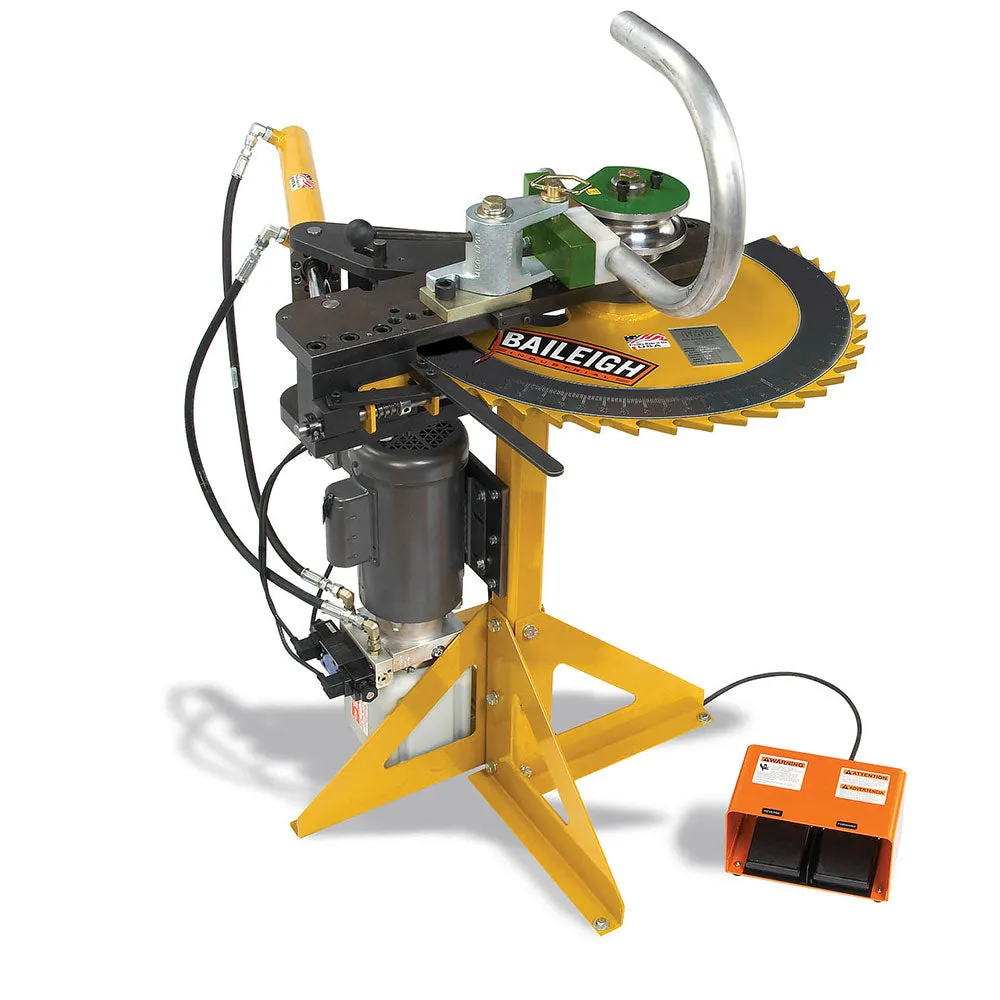

- RDB-125 - Industrial Rotary Draw Bender
- Owner's Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | RDB-125 |
| Power | 110V |
| Country of Manufacture | United States |
| Minimum CLR | .5" |
| Minimum OD | .25" |
| Mild Steel Solid Rod | 1" |
| Mild Steel Pipe Schedule 40 | 2" |
| Mild Steel Round Tube Wall | 2.5" (.125) |
| Mild Steel Square Tube (Wall) | 2" (.125) |
| Stainless Steel Pipe Schedule 40 | 1.5" |
| Stainless Steel Round Tube Wall | 2.375" (.125) |
| Chromolly Round Tube Wall | 2" (.125) |
| Aluminum Round Tube Wall | 2.5" (.156) |
| Maximum Center Line Radius Clr | 10.5" |
| Special Notes | Tooling not included, contact Baileigh at 920-684-4990 for correct sizing. |
| Things to Know Before Purchase | All capacities based on A53 grade A (mild steel) 48,000 psi tensile materials; heavy wall and high tensile materials may reduce machine capacity. Consult Baileigh Industrial to review material specifications. |
| Dimensions (Inches) | 60 x 44 x 77 |
| Weight | 550 lbs |
